Prime-Box-Connect--C

Prime-Box-Connect--C

Schubert System Elektronik
SKU: 80103600

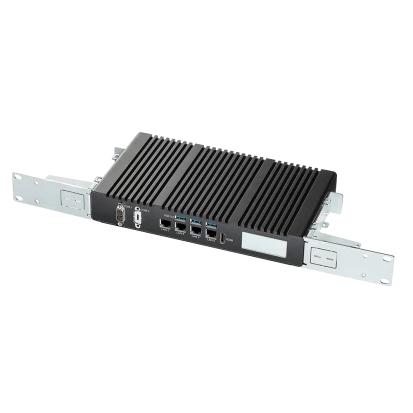

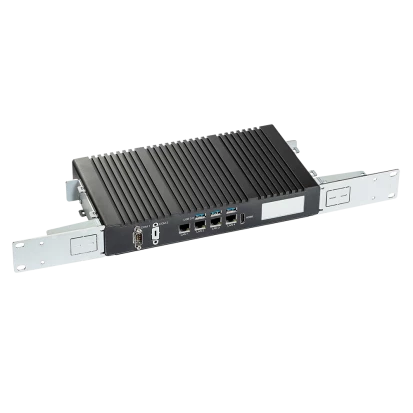

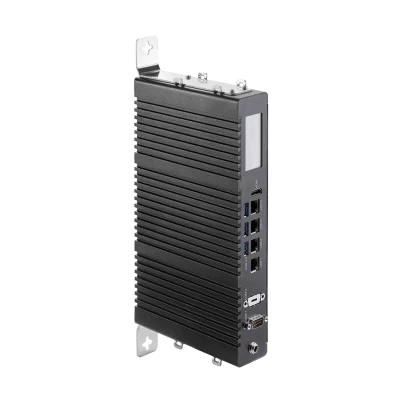

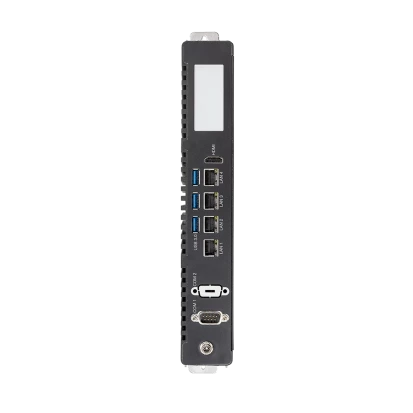

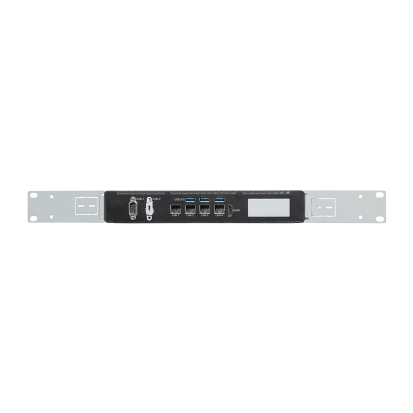

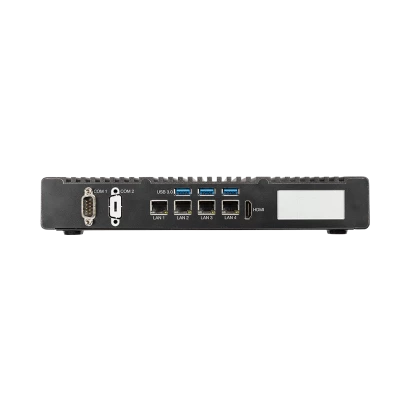

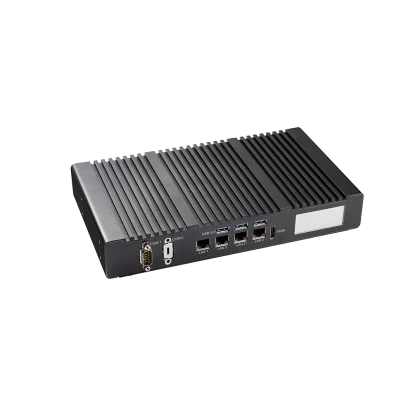

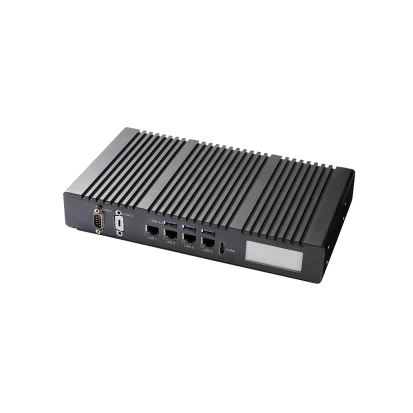

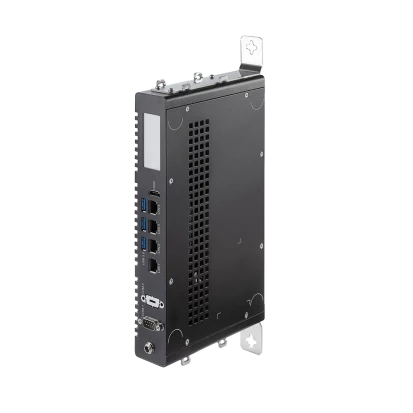

Prime Box Connect Pico Computer, Ready for Wall- & Rack Mount (option), Intel Celeron 4305UE 2.0GHz, 8GB DDR4, 4xGbE LAN (Optional 2xLAN), 3x USB, 1xHDMI, 1xRS232/422/485, 12V DC-in, 3-Jahre Garantie, PBI1200
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis

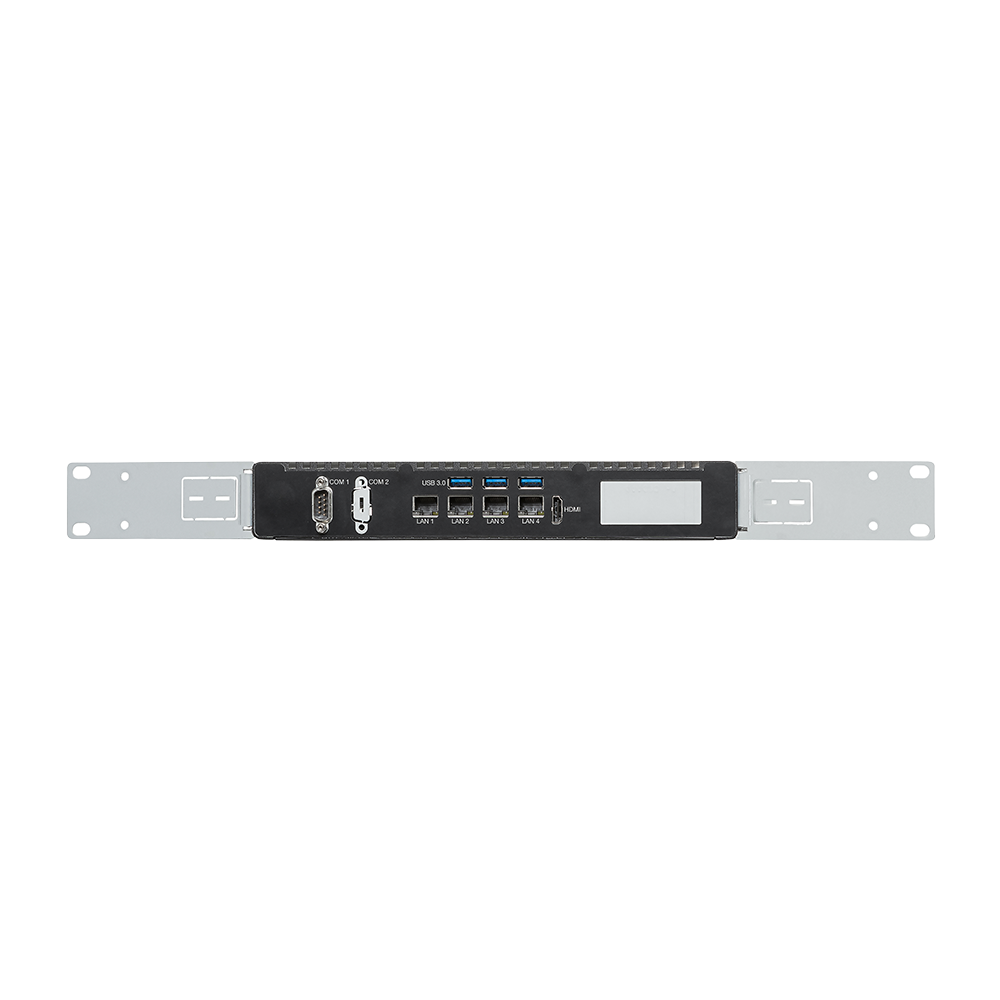

Mounting Configuration
Desktop, Wall, 19" Rackmount
Protection Level of Chassis
IP20
Type
Fanless
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Celeron 4305UE
Socket
FCBGA 1528
CPU Support Type
Core i3, Core i5, Core i7
Max CPU frequency
2 GHz
Chipset
Chipset
Intel Whiskey lake SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
4
10/100/1000 Mbit/s
4
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
7
USB 2.0
4
USB v3.x
3
Industrial Interfaces
CAN Port
2
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
Drive Interface
SATA
1st Storage Capacity
64 GB
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DB9, HDMI, 4xRJ45 Ethernet, 3xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Consumption
28.08 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Debian 10, Prime OS
Dimensions and weight
Width
170 mm
Height
55 mm
Depth
92.3 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4
Dimensions
Net Weight
1.8 kg
Gross Weight
2.5 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall, 19" Rackmount
Protection Level of Chassis
IP20
Type
Fanless
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Celeron 4305UE
Socket
FCBGA 1528
CPU Support Type
Core i3, Core i5, Core i7
Max CPU frequency
2 GHz
Chipset
Chipset
Intel Whiskey lake SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
4
10/100/1000 Mbit/s
4
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
7
USB 2.0
4
USB v3.x
3
Industrial Interfaces
CAN Port
2
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
Drive Interface
SATA
1st Storage Capacity
64 GB
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DB9, HDMI, 4xRJ45 Ethernet, 3xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Consumption
28.08 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Debian 10, Prime OS
Dimensions and weight
Width
170 mm
Height
55 mm
Depth
92.3 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4
Dimensions
Net Weight
1.8 kg
Gross Weight
2.5 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall, 19" Rackmount
Protection Level of Chassis
IP20
Type
Fanless
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Celeron 4305UE
Socket
FCBGA 1528
CPU Support Type
Core i3, Core i5, Core i7
Max CPU frequency
2 GHz
Chipset
Chipset
Intel Whiskey lake SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
4
10/100/1000 Mbit/s
4
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
7
USB 2.0
4
USB v3.x
3
Industrial Interfaces
CAN Port
2
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
Drive Interface
SATA
1st Storage Capacity
64 GB
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DB9, HDMI, 4xRJ45 Ethernet, 3xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Consumption
28.08 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Debian 10, Prime OS
Dimensions and weight
Width
170 mm
Height
55 mm
Depth
92.3 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4
Dimensions
Net Weight
1.8 kg
Gross Weight
2.5 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall, 19" Rackmount
Protection Level of Chassis
IP20
Type
Fanless
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Celeron 4305UE
Socket
FCBGA 1528
CPU Support Type
Core i3, Core i5, Core i7
Max CPU frequency
2 GHz
Chipset
Chipset
Intel Whiskey lake SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
4
10/100/1000 Mbit/s
4
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
7
USB 2.0
4
USB v3.x
3
Industrial Interfaces
CAN Port
2
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
Drive Interface
SATA
1st Storage Capacity
64 GB
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DB9, HDMI, 4xRJ45 Ethernet, 3xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Consumption
28.08 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Debian 10, Prime OS
Dimensions and weight
Width
170 mm
Height
55 mm
Depth
92.3 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4
Dimensions
Net Weight
1.8 kg
Gross Weight
2.5 kg
Documentation
Prime_Box_Connect_FactSheet_Datasheet_DE.pdf
Documentation
Prime_Box_Connect_FactSheet_Datasheet_DE.pdf
Documentation
Prime_Box_Connect_FactSheet_Datasheet_DE.pdf
Documentation
Prime_Box_Connect_FactSheet_Datasheet_DE.pdf
