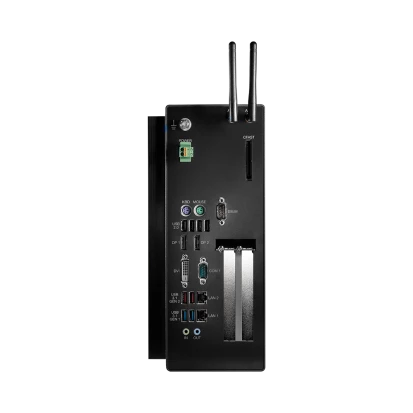

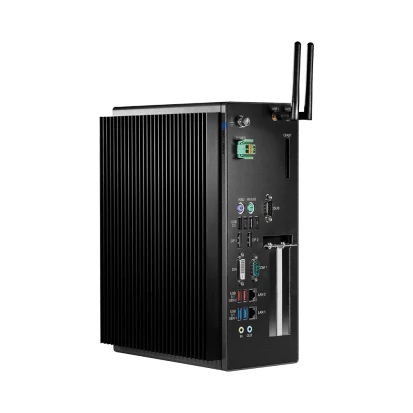

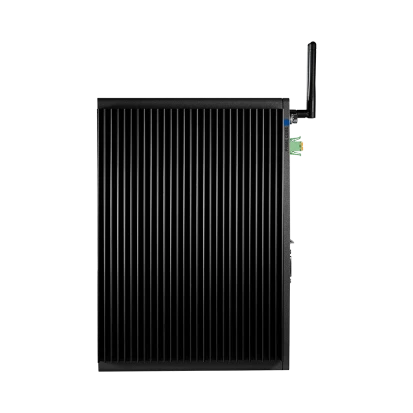

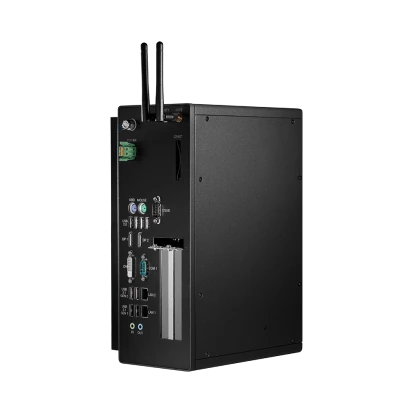

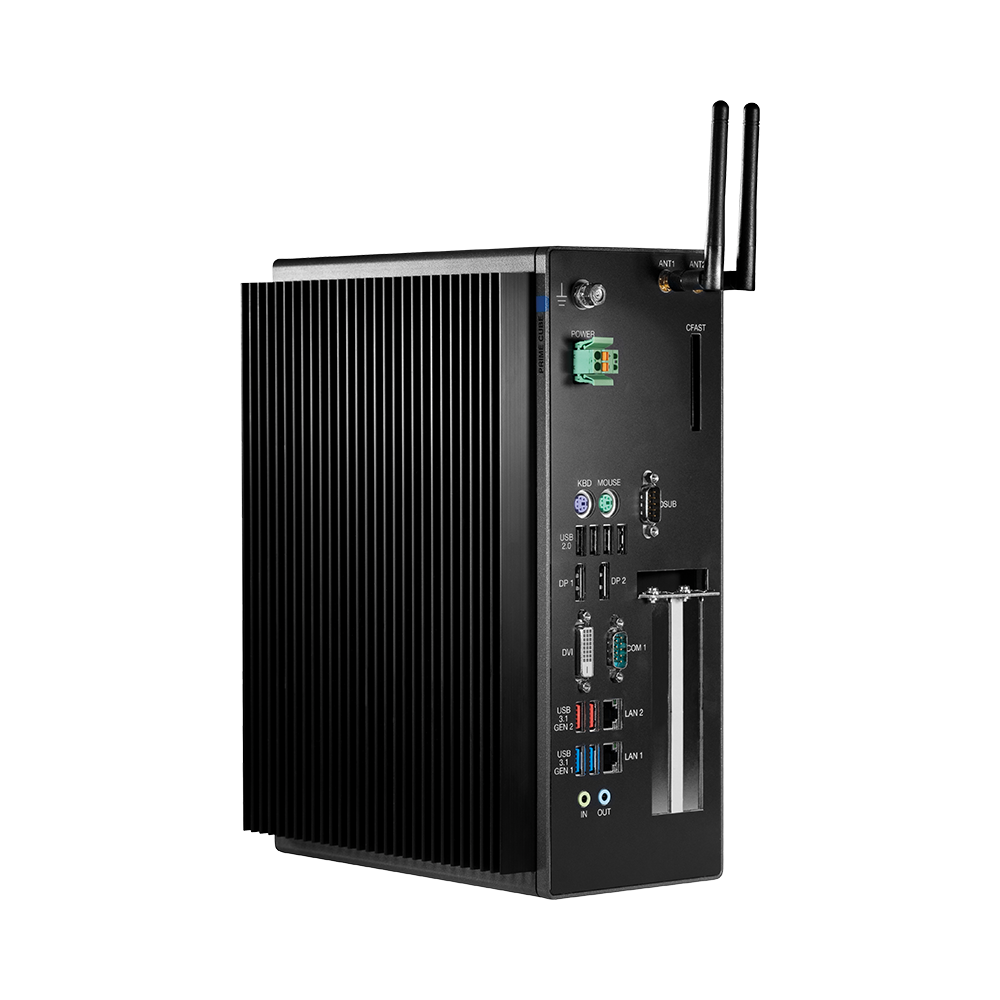

Prime-Box-Performance--C

Schubert System Elektronik
SKU: 80103800
Prime Box Performance System, Wall-mount, Intel 9/8th Gen Core i5, up to 32GB DDR4, 2xDP, DVI-D, 2xGbE LAN, 4x USB, 1xRS232, 24V (18..36) DC-in, 3-Jahre Garantie, PBI1000ED_112
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP20
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
Processor Installed
Intel Celeron G4900T
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Max CPU frequency
2.9 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-D, 2xDisplayPort
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
SATA 3
2
RAID Levels
0, 1
M.2
1
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
3
PCI Express x16
1
M.2
1
M.2 Form Factor
2280 M
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xDB9, DVI-D, 2xRJ45 Ethernet, 8xUSB, Line In, Line Out, 2xDisplayPort, DC input (terminal block), 2xPS/2 Keyboard/Mouse, CFast slot
System Power Input
Input Voltage DC
18..36 V
Power Consumption
72 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Debian 10, Prime OS
Dimensions and weight
Width
300 mm
Height
132 mm
Depth
210.3 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
5-85%
Standards and Certifications
Certifications
CE, IEC 61000-6-2
Safety
CSA, UL 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
5.35 kg
Gross Weight
6.1 kg
