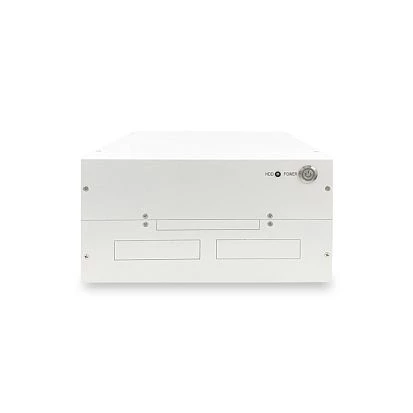

WPC-767F

WPC-767F

Wincomm
SKU: 57719400
Medical Box PC, Intel 9th Gen Core i5-9500E 3.0Ghz CPU, H310 Chipset, 4GB DDR4 RAM, 500GB 2.5" HDD, DP/DVI-D/VGA, 2xGbE LAN, 2xRS232/422/485, 4xUSB 3.0, 2xUSB 2.0, 2xM.2, 1xMini PCIe, 1xPCI-E x16, 1xPCI-E x1, Audio, 12V-24VDC-in, 0..40C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fan
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Processor Installed
Intel Core i5-9500E
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Max CPU frequency
4.2 GHz
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
500 GB
Extension Slots
Total
5
PCI Express x16
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors

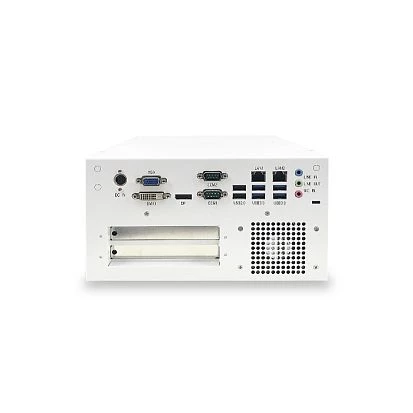

2xDB9, DVI-D, DB15 VGA, 2xRJ45 Ethernet, 6xUSB, Audio (in/out/Mic), DC Input, Display Port
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
180 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
242.6 mm
Height
130 mm
Depth
301 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
Medicine
UL 60601-1-1-2
Dimensions
Net Weight
3.2 kg
Gross Weight
4 kg
Construction
