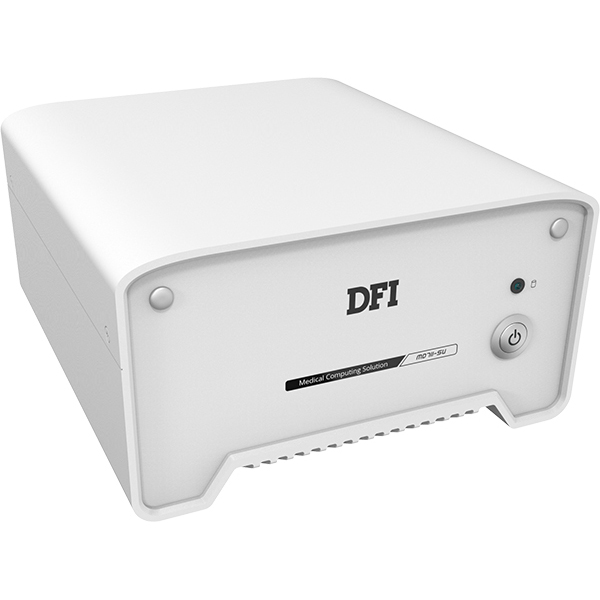

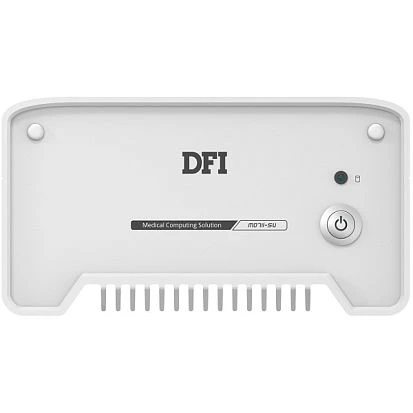

MD711-SU2061-66
DFI
SKU: 56370500
Modular-Designed Embedded System,Intel Core i7-6600U, up to 32GB 2xSODIMM 2133 DDR4, DVI-I, 2xLAN, 2xCOM, 6xUSB, M.2 slot, 1 PCIe x16,Mini PCIe, 9-36V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
CPU
Processor Installed
Intel Core i7-6600U
Max CPU frequency
3.4 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
2
USB Total
4
USB v3.x
4
Extension Slots
PCI Express x16
1
Mini-PCIe/Mini Card
1
PCI
1

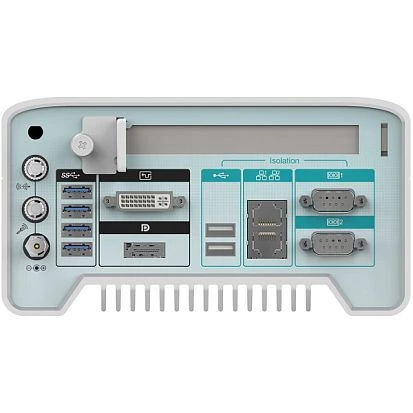

Connectors
Connectors
DVI-D, 2xRJ45 Ethernet, Mic In, Line Out, Display Port
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Windows 7, Windows 8.1, Windows 10

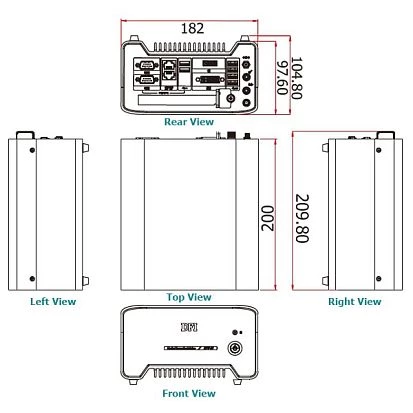

Dimensions and weight
Width
98 mm
Height
182 mm
Depth
200 mm
Operating Conditions
Operating Temperature
0..40 °C
Vibration
Operating: Random 5~500Hz, IEC68-2-64 (3G) (SSD/mSATA), IEC68-2-64 (0.5G) (HDD) Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G) (SSD/mSATA), IEC68-2-6 (1G) (HDD)
Shock
Operating: 3G, 11ms Non-Operating: 5G, 11ms
Standards and Certifications
Certifications
CE, FCC
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
