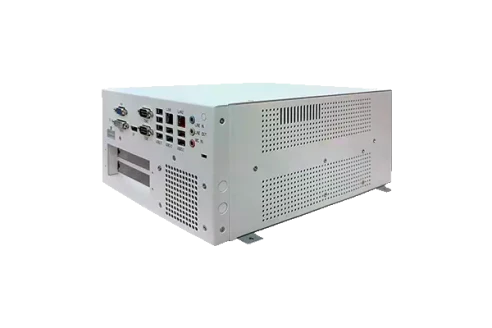

WPC-76BF
Wincomm
SKU: 80387500
Medical Edge AI Box PC, Intel 12/13/14th Gen Core i9/i7/i5/i3 CPU, Q670E, Up to 64GB DDR5 RAM, DP, DVI-D, VGA, 2xLAN, 4xUSB 3.2, 4xUSB 2.0, 2xCOM, 1x2.5" Bay, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, 1xPCIe x16, 1xPCIe x4, 12-24VDC-in with 300W PSU
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fan
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Processor Installed
Options Available – Contact Sales
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, VGA
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
5
PCI Express x16
1
PCI Express x4
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors

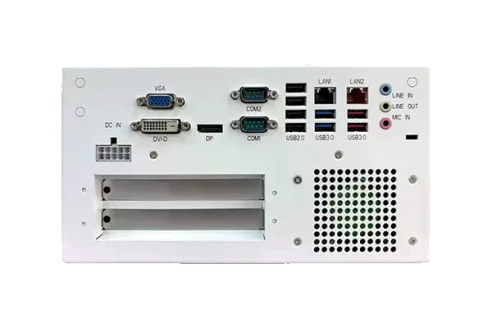

2x5pin ATX, 2xDB9, DVI-D, DB15 VGA, 2xRJ45 Ethernet, 8xUSB, Mic In, Line In, Line Out, Display Port
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
300 W
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
242.6 mm
Height
130 mm
Depth
301 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI, EN 60601
Medicine
UL 60601-1
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
