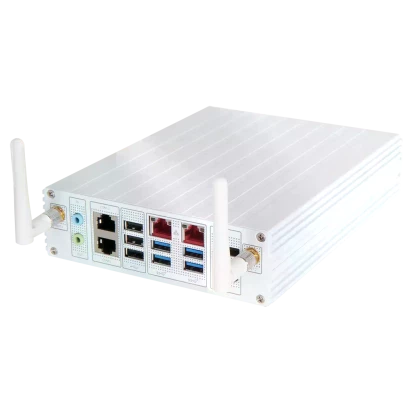

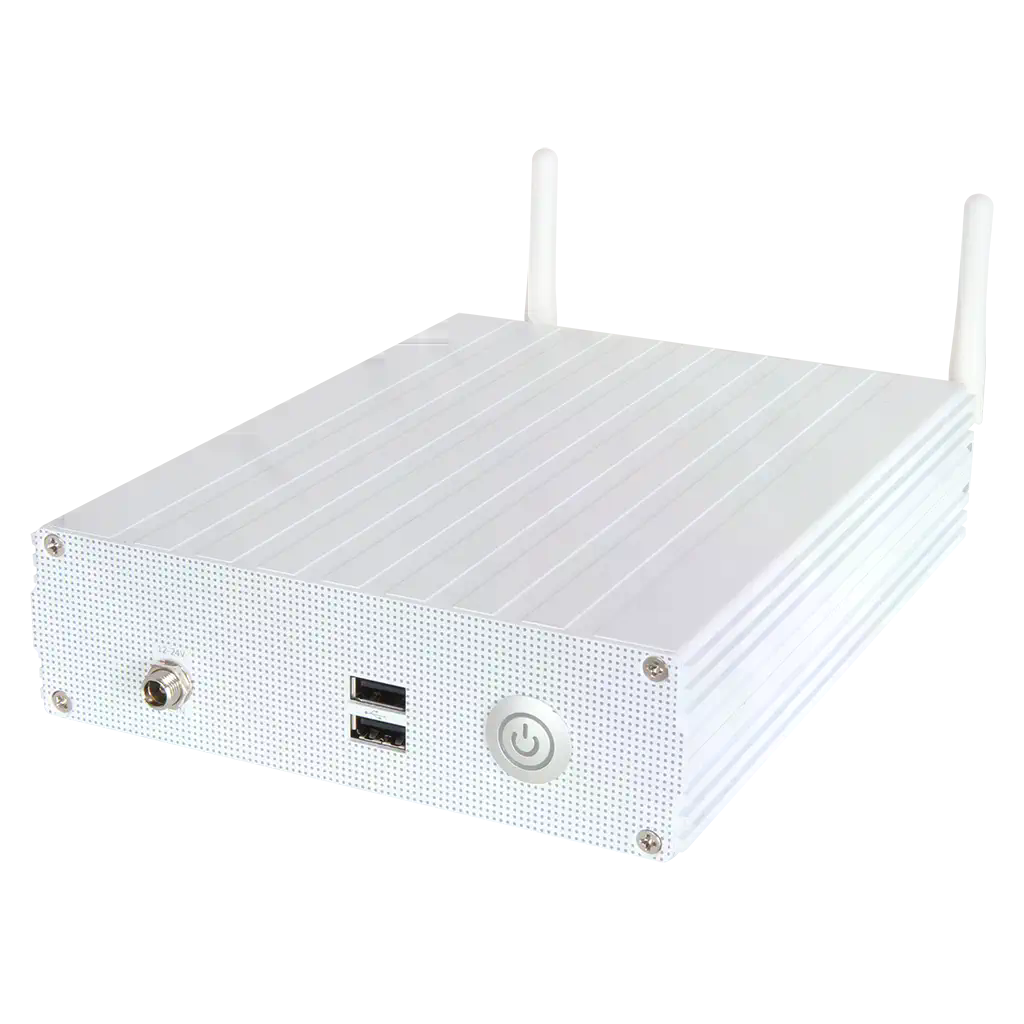

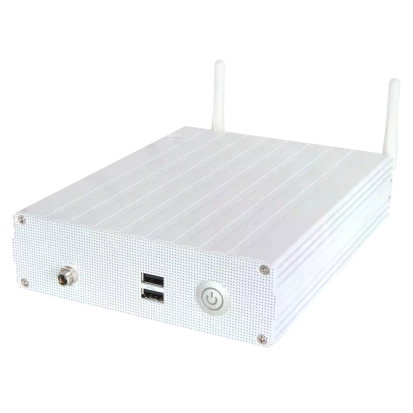

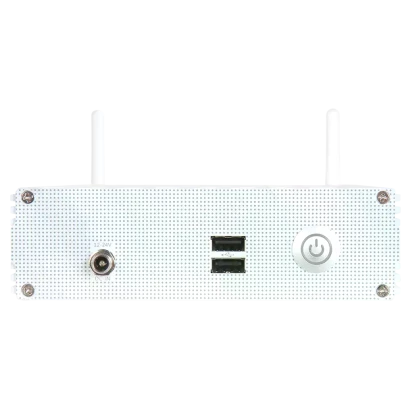

DTEC-C012
Wincomm
SKU: 80387400
Fanless Medical Edge AI Box PC, Intel 12th Gen Core i7/i5/i3 CPU, Up to 64GB DDR5 RAM, DP, HDMI, 2x2.5GbE LAN, 4xUSB 3.2, 5xUSB 2.0, 2xCOM (RJ45), 1x2.5" Bay, 1xM.2 Key-M, 1xM.2 Key-E, Audio, 12-24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Options Available – Contact Sales
Socket
FCBGA1744
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i226-LM
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
USB Total
9
USB 2.0
5
USB v3.x
4
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

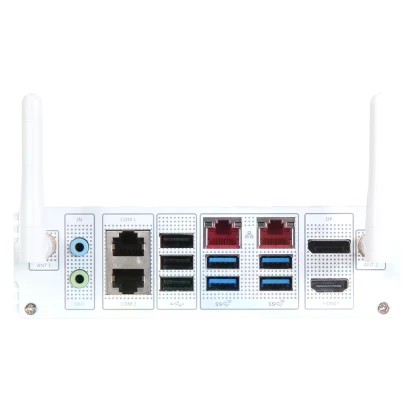

HDMI, 2xRJ45 Ethernet, 9xUSB, Mic In, Line Out, DC Input, Display Port, 2xRJ45 (COM)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
152 mm
Height
44 mm
Depth
196 mm
Operating Conditions
Operating Temperature
-5..40 °C
Standards and Certifications
Medicine
EN 60601-1
Dimensions
Net Weight
3.5 kg
Gross Weight
4.4 kg
