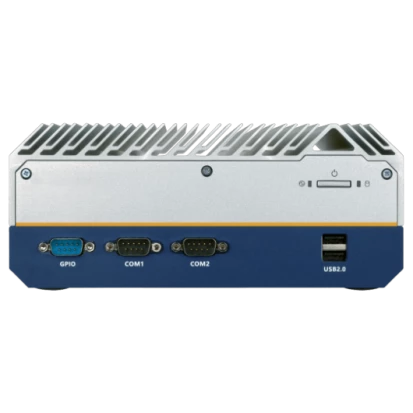

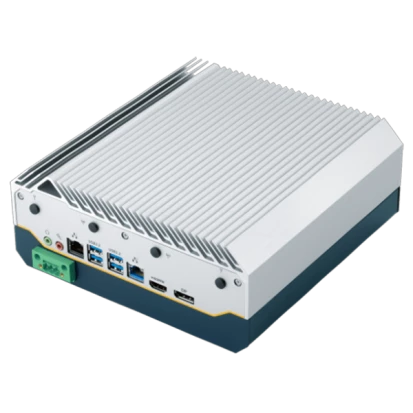

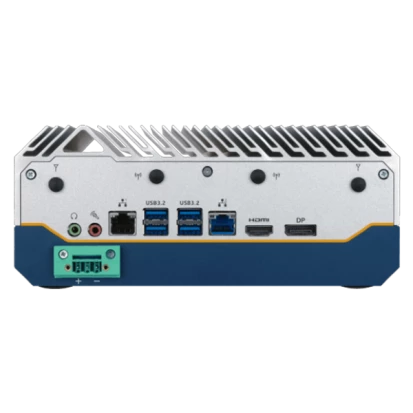

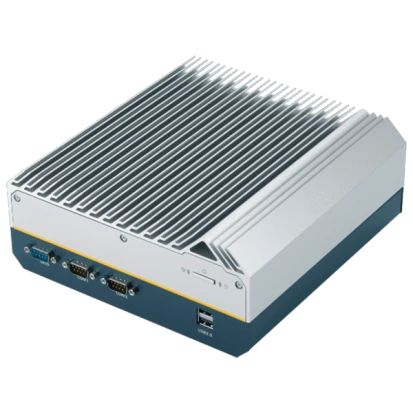

IBS-800-H--C

IBS-800-H--C

Industrial Personal Computer 2U GmbH
SKU: 80207700
Fanless Embedded PC, Support Intel Core Ultra 9/7/5 CPU, Up to 96GB DDR5 RAM, DP/HDMI, 2xLAN, 4xUSB 3.2, 2xUSB 2.0, 2xCOM, GPIO, 1x2.5" Bay, 1xM.2 2280 Key-M, 1xM.2 3042 Key-B, 1xM.2 2230 Key-E, Audio, 12-26VDC-in, 24V Power Adapter
1 005,62 €
Price exlc. VAT and shipping costs
Available
Available
CPU
Price with VAT
Price on request
Price on request
Price on request
Price on request
Price on request
RAM
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
HDD/SSD 2.5"
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Flash Disk / mSATA / M.2
Price on request
Price on request
Price on request
Price on request
Price on request
CPU
Price with VAT
Price on request
Price on request
Price on request
Price on request
Price on request
RAM
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
HDD/SSD 2.5"
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Flash Disk / mSATA / M.2
Price on request
Price on request
Price on request
Price on request
Price on request
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Arrow Lake
Socket
LGA1851
CPU Support Type
Core Ultra 5, Core Ultra 7, Core Ultra 9
Chipset
Chipset
Intel H810
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B, 2242 B
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, DC input (terminal block), DB9 GPIO
System Power Input
Input Voltage DC
12..26 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
209 mm
Height
87 mm
Depth
209 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.3 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Arrow Lake
Socket
LGA1851
CPU Support Type
Core Ultra 5, Core Ultra 7, Core Ultra 9
Chipset
Chipset
Intel H810
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B, 2242 B
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, DC input (terminal block), DB9 GPIO
System Power Input
Input Voltage DC
12..26 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
209 mm
Height
87 mm
Depth
209 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.3 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Arrow Lake
Socket
LGA1851
CPU Support Type
Core Ultra 5, Core Ultra 7, Core Ultra 9
Chipset
Chipset
Intel H810
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B, 2242 B
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, DC input (terminal block), DB9 GPIO
System Power Input
Input Voltage DC
12..26 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
209 mm
Height
87 mm
Depth
209 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.3 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Arrow Lake
Socket
LGA1851
CPU Support Type
Core Ultra 5, Core Ultra 7, Core Ultra 9
Chipset
Chipset
Intel H810
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B, 2242 B
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, DC input (terminal block), DB9 GPIO
System Power Input
Input Voltage DC
12..26 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
209 mm
Height
87 mm
Depth
209 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.3 kg
Gross Weight
5 kg
Documentation
IBS-800-H Datasheet
Documentation
IBS-800-H Datasheet
Documentation
IBS-800-H Datasheet
Documentation
IBS-800-H Datasheet

Get a Quote

IBS-800-H--C
Industrial Personal Computer 2U GmbH
SKU: 80207700
IBS-800-H--C
IBS-800-H--C
IBS-800-H--C
IBS-800-H--C

Recommended products

NIFE-106-A01--C NIFE-106-A01--C NIFE-106-A01--C NIFE-106-A01--C NIFE-106-A01--C
NEXCOM
NIFE-106-A01--C
Fanless Fieldbus Box-PC, Intel N97 2.0GHz CPU, 8GB LPDDR5 RAM, 64GB eMMC, 1xHDMI, 3x2.5GbE LAN, 2xUSB 3.2, 1xRS232/485 2.5KV isolation, 12/24VDC-in, Win 11 IoT LTSC
AIP-MURE5-A1 AIP-MURE5-A1 AIP-MURE5-A1
AETINA
AIP-MURE5-A1
Fanless Edge AI Box PC, Intel Core i5-1345URE CPU, Up to 96GB LPDDR5 RAM, HDMI, DP, VGA, 2xGbE PoE LAN, 1xOBB, 2xUSB 3.2, 2xUSB 2.0, 2xCOM, 8-bit GPIO, 2.5" Bay, 2xM.2 Key-M (NVMe/AI ASIC), 1xM.2 Key-M (AI ASIC), 1xM.2 Key-B, 1xM.2 Key-E, 12-24VDC-in
AIP-MURE7-A1 AIP-MURE7-A1 AIP-MURE7-A1
AETINA
AIP-MURE7-A1
Fanless Edge AI Box PC, Intel Core i7-1365URE CPU, Up to 96GB LPDDR5 RAM, HDMI, DP, VGA, 2xGbE PoE LAN, 1xOBB, 2xUSB 3.2, 2xUSB 2.0, 2xCOM, 8-bit GPIO, 2.5" Bay, 2xM.2 Key-M (NVMe/AI ASIC), 1xM.2 Key-M (AI ASIC), 1xM.2 Key-B, 1xM.2 Key-E, 12-24VDC-in
AIP-MURE3-A1 AIP-MURE3-A1 AIP-MURE3-A1
AETINA
AIP-MURE3-A1
Fanless Edge AI Box PC, Intel Core i3-1315URE CPU, Up to 96GB LPDDR5 RAM, HDMI, DP, VGA, 2xGbE PoE LAN, 1xOBB, 2xUSB 3.2, 2xUSB 2.0, 2xCOM, 8-bit GPIO, 2.5" Bay, 2xM.2 Key-M (NVMe/AI ASIC), 1xM.2 Key-M (AI ASIC), 1xM.2 Key-B, 1xM.2 Key-E, 12-24VDC-in
NISE-3900-2Slot--C NISE-3900-2Slot--C NISE-3900-2Slot--C
NEXCOM
NISE-3900-2Slot--C
Fanless Box-PC NISE3900xxx Series, Intel Core 9/8th Gen i7/i5/i3 CPUs, 8GB DDR4, 128GB SSD, DP, DVI-D, HDMI, 3xGbit LAN, 4xUSB 2.0, 6xUSB 3.1, 4xCOM, Audio, 1xMini-PCIe, 2xPCIe x4 or 2xPCI or PCIe x4 & PCI Slots, 120W extrenal Power Adapter
NISE-3900E--C NISE-3900E--C NISE-3900E--C NISE-3900E--C
NEXCOM
NISE-3900E--C
Fanless Box-PC NISE3900E, Intel Core 9/8th Gen i7/i5/i3 CPUs, 8GB DDR4, 128GB SSD, DP, DVI-D, HDMI, 3xGbit LAN, 4xUSB 2.0, 6xUSB 3.1, 4xCOM, Audio, 1xPCIe x4, 120W extrenal Power Adapter, Win 11 IoT LTSC
CLINE-4500--C CLINE-4500--C
Industrial Personal Computer 2U GmbH
CLINE-4500--C
Fanless Embedded Box PC, Intel 12th Gen Core i3/i5/i7 CPU, up to 32GB DDR4 RAM, HDMI, 2xGbE LAN, 4xUSB 2.0, 4xUSB 3.0, 2xCOM, Audio, 1xMiniPCIe, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 9-36VDC-In
139M-Medical-Micro-PC--M 139M-Medical-Micro-PC--M 139M-Medical-Micro-PC--M 139M-Medical-Micro-PC--M 139M-Medical-Micro-PC--M
DT Research
139M-Medical-Micro-PC--M
Fanless Medical Micro PC, Intel 10th Gen Core i5/i7/i9/Pentium CPU, 8GB (Up to 64GB) DDR4 RAM, 2xM.2 Key-M (512GB to 4TB M.2 SSD), 2xHDMI, DP, 2xGbE LAN, 4xUSB 3.0, 4xCOM, WiFi Opt., Audio, 15-20VDC-in with Power Adapter
Prime-Box-Performance--C Prime-Box-Performance--C Prime-Box-Performance--C Prime-Box-Performance--C
Schubert System Elektronik
Prime-Box-Performance--C
Prime Box Performance System, Wall-mount, Intel 9/8th Gen Core i5, up to 32GB DDR4, 2xDP, DVI-D, 2xGbE LAN, 4x USB, 1xRS232, 24V (18..36) DC-in, 3-Jahre Garantie, PBI1000ED_112
Prime-Box-Connect--C Prime-Box-Connect--C Prime-Box-Connect--C Prime-Box-Connect--C Prime-Box-Connect--C
Schubert System Elektronik
Prime-Box-Connect--C
Prime Box Connect Pico Computer, Ready for Wall- & Rack Mount (option), Intel Celeron 4305UE 2.0GHz, 8GB DDR4, 4xGbE LAN (Optional 2xLAN), 3x USB, 1xHDMI, 1xRS232/422/485, 12V DC-in, 3-Jahre Garantie, PBI1200
IBS-600-H--C IBS-600-H--C IBS-600-H--C IBS-600-H--C IBS-600-H--C
Industrial Personal Computer 2U GmbH
IBS-600-H--C
Fanless iKERN Box System IBS-600-H, Support Intel Core 14/13th/ Gen., up to 64GB DDR5 RAM, M.2 2280 M-key, M.2 2230, M.2 3042, DP, HDMI, 2xGbE LAN, 4xUSB 3.2 Gen1, 2xUSB 2.0, 2xCOM, GPIO, Audio, 12V DC-In Terminal
TT-300-AXQ--C TT-300-AXQ--C TT-300-AXQ--C
NEXCOM
TT-300-AXQ--C
Fanless Embedded TT-300 System, Intel 12/13th Gen Core i7/i5/i3 CPU, 16GB DDR5 RAM, 256GB M.2 SSD, 2xHDMI, 2xDP, 4xUSB 3.0, 2xGbE LAN, 8x/4xCOM, 2x2.5" Bay, 1xMini-PCIe, 1xM.2 Key-B, 2xPCIe x4 or 1xPCIe x16 or w/o, 24VDC-in, 120W PSU, Win 11 IoT LTSC
NISE-4310-E01--C NISE-4310-E01--C NISE-4310-E01--C NISE-4310-E01--C
NEXCOM
NISE-4310-E01--C
Fanless Embedded NISE-4310 System, Intel Atom x6425E 2.0GHz CPU, 8GB DDR4 RAM, 128GB M.2 SATA SSD, HDMI, DP, 6x2.5GbE LAN, 4xCOM, 2xUSB 3.1, 4xUSB 2.0, GPIO, 1x2.5" Drive Bay, 1xMiniPCIe, 9-30VDC-in, 60W Power Adapter, Win 11 IoT LTSC
NISE-53-E01--C NISE-53-E01--C NISE-53-E01--C NISE-53-E01--C
NEXCOM
NISE-53-E01--C
Fanless Mini-PC NISE-53, Intel Celeron J6413 2.0GHz CPU, 8GB DDR4 RAM, 128GB M.2 SATA SSD, 3xHDMI, 3xGbE LAN, 2xCOM, 2xUSB 3.0, 2xUSB 2.0, GPIO, 1xMiniPCIe, 1xM.2 Key-B, 12-24VDC-In with 60W Power Adapter, Win 11 IoT LTSC
NISE-109-E01-WT--C NISE-109-E01-WT--C
NEXCOM
NISE-109-E01-WT--C
Mini Box-PC NISE-109 E01 Wide Temp, Intel Atom x6211E 1.3GHz Dual Core CPU, 8GB DDR4 RAM, 256GB M.2 SATA SSD, HDMI, DP, 2xGbE LAN, 4xCOM, 3xUSB 3.0, 3xUSB 2.0, 1x2.5" Drive Bay, 1xMiniPCIe, Audio, 9-30VDC-in, 60W Power Adapter, Win 11 IoT LTSC
NISE-3910-with-2Slot--C NISE-3910-with-2Slot--C NISE-3910-with-2Slot--C NISE-3910-with-2Slot--C
NEXCOM
NISE-3910-with-2Slot--C
Embedded NISE-3910XXX Serie, Intel 12/13th Gen Core i9/i7/i5/i3 CPU, Intel Q670E, 16GB DDR5 RAM, 256GB M.2 SSD, HDMI/DP/VGA, 4x2.5GbE LAN, 4xCOM, 4xUSB 3.2, 4xUSB 2.0, 1xM.2 Key-B, 1xMiniPCIe, PCIe x16 or 2xPCIe x4 or 2xPCI or PCIe x4 / PCI, 120W PSU
NISE-109-E02--C NISE-109-E02--C
NEXCOM
NISE-109-E02--C
Mini Box-PC NISE-109, Intel Celeron J6412 2.0GHz CPU, 8GB DDR4 RAM, 256GB M.2 SATA SSD, HDMI, DP, 2xGbE LAN, 4xCOM, 3xUSB 3.0, 3xUSB 2.0, 1x2.5" Drive Bay, 1xMiniPCIe, Audio, 9-30VDC-in, 60W Power Adapter, Win 11 IoT LTSC
NISE-3910E--C NISE-3910E--C NISE-3910E--C NISE-3910E--C
NEXCOM
NISE-3910E--C
Fanless Embedded PC NISE-3910E, Intel 12/13th Gen Core i9/i7/i5/i3 CPU, 16GB DDR5 RAM, 256GB M.2 SSD, HDMI, DP, VGA, 4x2.5GbE LAN, 2xCOM, 4xUSB 3.2, 4xUSB 2.0, 1xM.2 Key-B, 1xMiniPCIe, 1xPCIe x4, 12-30VDC-in, 120W Power Adapter, Win 11 IoT LTSC
