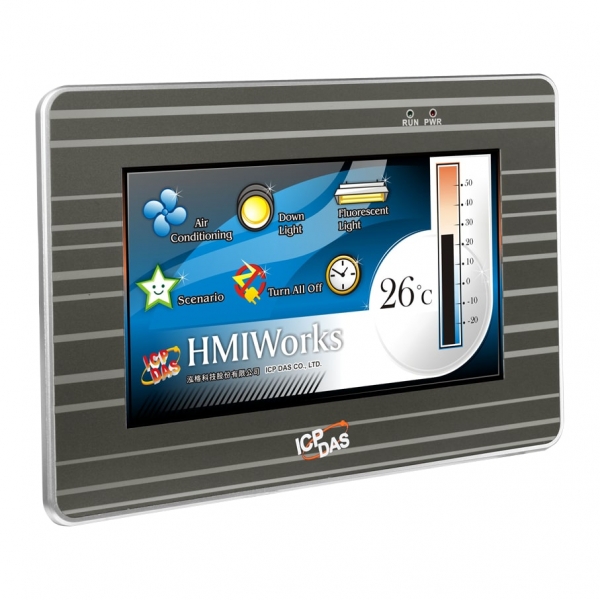

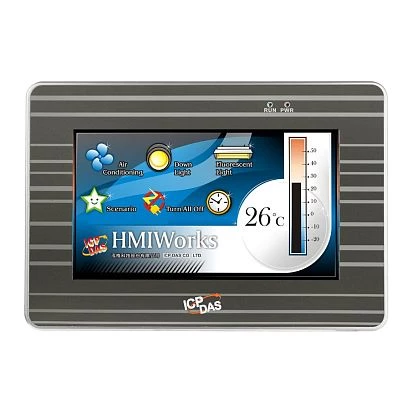

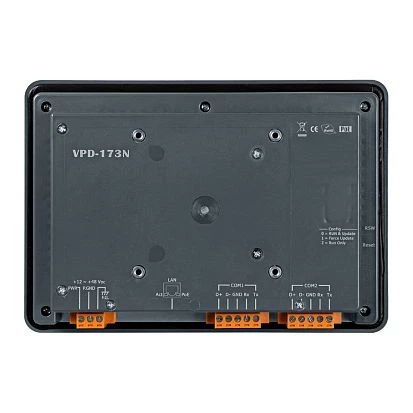

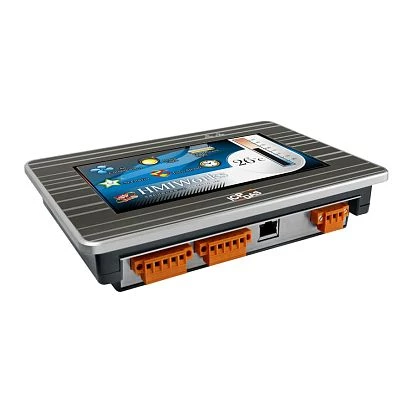

VPD-173N

VPD-173N

ICP DAS
SKU: 07364800
7" resistive touch HMI device with 32-bit RISC CPU, 16 MB SDRAM, 16 MB Flash, 2xCOM, 1xEthernet, PoE IEEE 802.3af, 12...48VDC-in, NEMA 4/IP65 Front
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel, Wall
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
800x480 Dots
Brightness
250 Cd/m2
Touch Screen
Touch Screen Type
Resistive
Installed drive
Flash Memory Capacity
16 MB
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
RS-232/485
2
Isolation of COM Ports
2.5 kV (RS-232/485)
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, DCON master
Software
Development Software
HMIWorks
Programming Method
Ladder Diagram, C/C++
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
217 mm
Depth
33 mm
Height
153 mm
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Net Weight
0.4 kg
Gross Weight
0.5 kg
