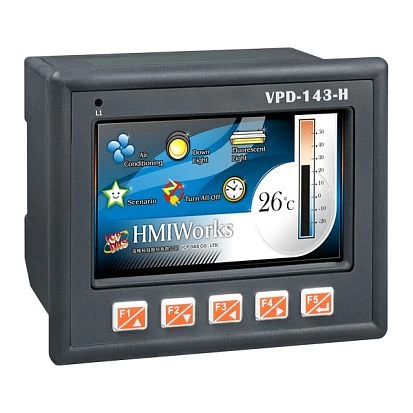

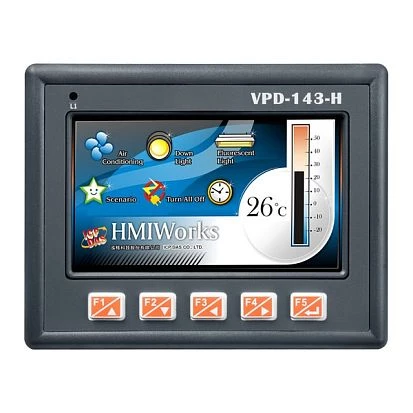

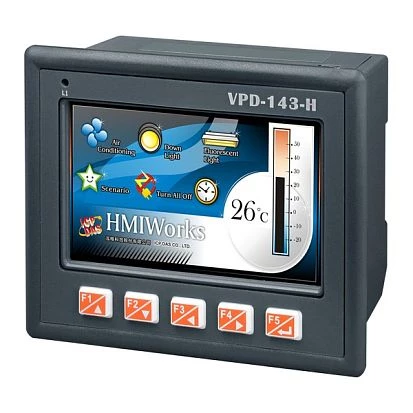

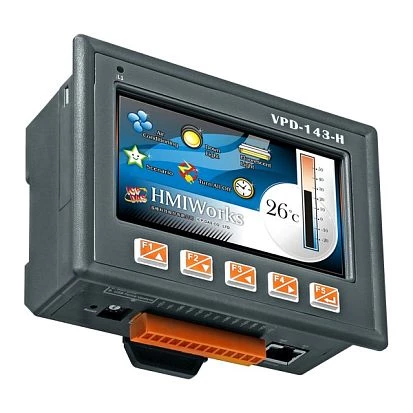

VPD-143-H

VPD-143-H

ICP DAS
SKU: 07638000
4.3" Touch HMI device with Ethernet, RS-232/RS-485, USB, RTC, Rubber Keypad, support XV-board (RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Panel
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
4.3 "
Maximum resolution
480x272 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Resistive
Installed drive
Flash Memory Capacity
8 MB
Ethernet
10/100 Mbit/s
1
Interfaces
RS-232/485
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, DCON master
Software
Development Software
HMIWorks
Programming Method
Ladder Diagram, C/C++
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
131 mm
Depth
54 mm
Height
105 mm
Operating Conditions
Operating Temperature
-20..50 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
