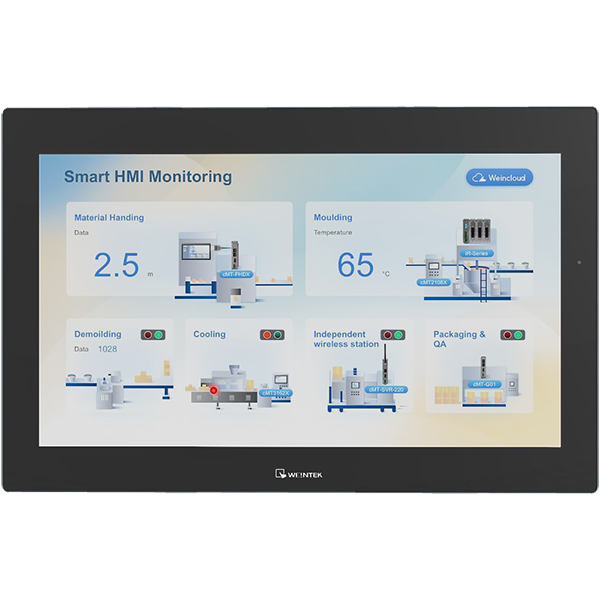

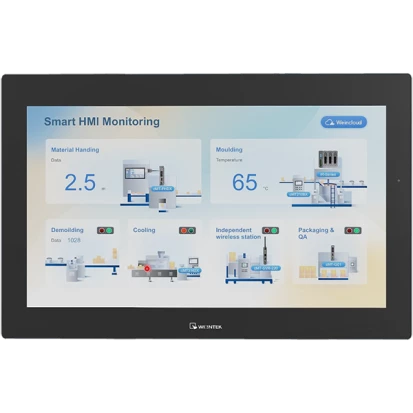

cMT3218XP

cMT3218XP

Weintek
SKU: 80130100
21.5" Operator Panel (HMI), IP66 Front, NEMA4 Certification, 1920x1080, 500cd/m2, PCAP Touch, Quad-core RISC SoC, 2GB RAM, 4GB Flash, 1xGbE LAN, 1x100MbitLAN, 2xUSB 2.0, 2xCOM, 1xCAN, 24VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP66, NEMA 4
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
Memory
Default on Board Memory
2 GB
Installed drive
Flash Memory Capacity
4 MB
Ethernet
Total Ethernet
2
10/100 Mbit/s
1
10/100/1000 Mbit/s
1
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
Interfaces
COM Total
2
RS-232
1
RS-485
1
USB Total
2
Supported Protocols
Industrial Protocols
CANopen, CAN 2.0 A/B
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
546 mm
Depth
354 mm
Height
47.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
5.5 kg
Gross Weight
6.5 kg
