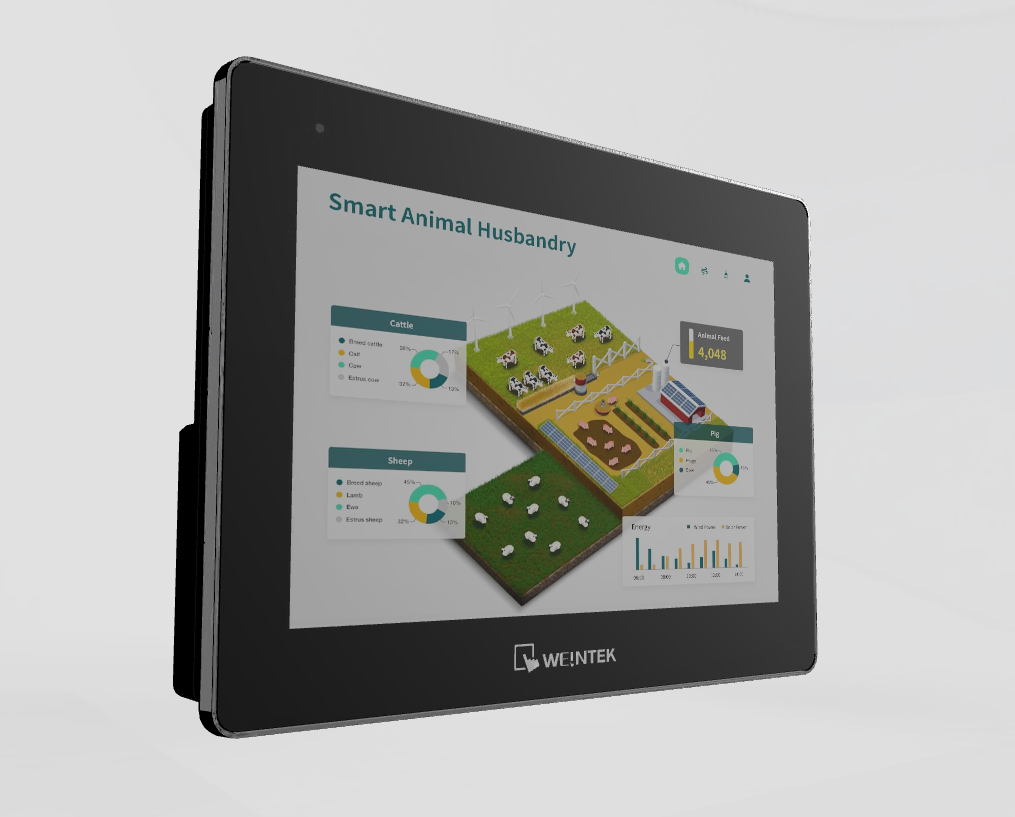

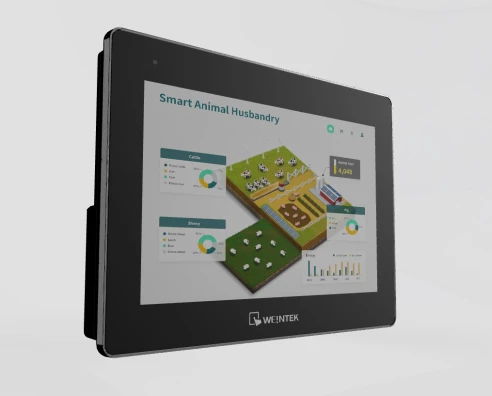

cMT3108XP

cMT3108XP

Weintek
SKU: 10141100
Operator Panel, 10.1" TFT LCD, Quad-core RISC CPU, 1GB RAM, 4GB Flash, GbE LAN, LAN, 3xCOM, 24VDC-in
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66, NEMA 4
Material Front Side (Panel)
Plastic
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
500 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
Memory
Default on Board Memory
1 GB
Installed drive
Flash Memory Capacity
4096 MB
Ethernet
Total Ethernet
2
10/100 Mbit/s
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
3
RS-232
1
RS-232/485
1
RS-422/485
1
USB Total
1
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU master, Modbus RTU, Modbus RTU slave, Modbus ASCII, CAN, OPC UA client, OPC UA server, MQTT
Software
Development Software
CoDeSys, EasyBuilder Pro
System Power Input
Input Voltage DC
20..28 V
Dimensions and weight
Width
266 mm
Depth
42.7 mm
Height
196 mm
Operating Conditions
Operating Temperature
0..55 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
1.57 kg
Gross Weight
1.57 kg
