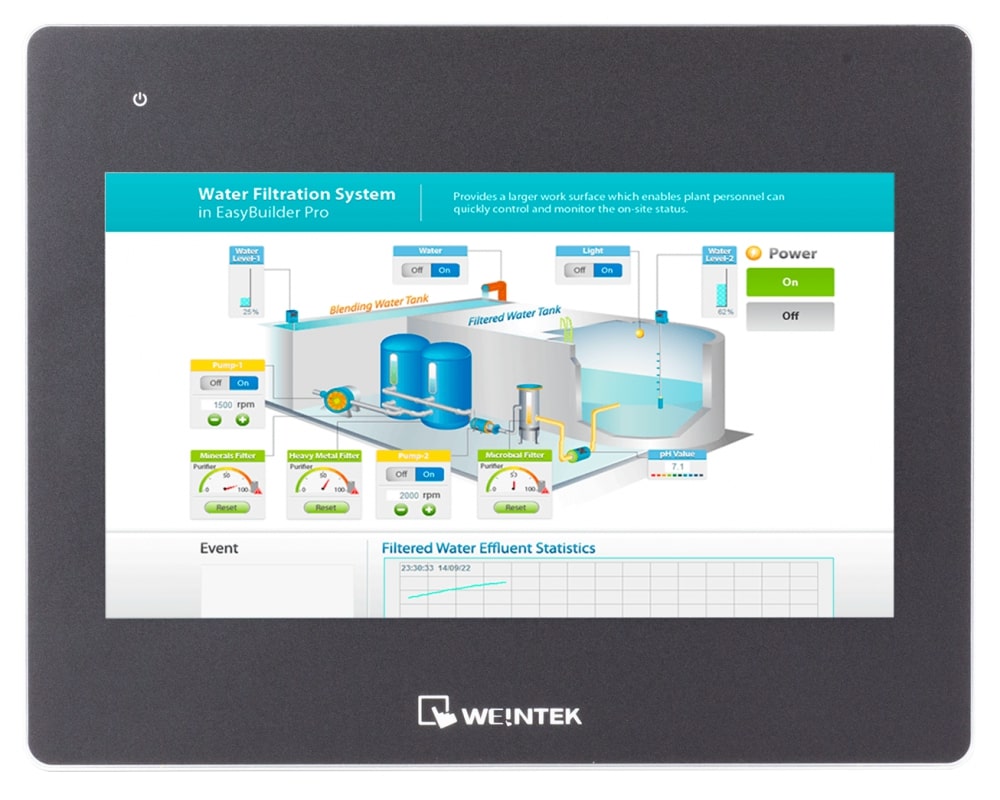

cMT3108XH

cMT3108XH

Weintek
SKU: 09779000
Operator Panel, 10.1" TFT LCD, Quad-core RISC CPU, 1GB RAM, 4GB Flash, GbE LAN, LAN, 3xCOM, CAN, 24VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Embedded
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
500 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Resistive
Memory
Default on Board Memory
1 GB
Installed drive
Flash Memory Capacity
4 MB
Ethernet
Total Ethernet
2
10/100 Mbit/s
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
Supported Protocols
Industrial Protocols
CAN, CANopen
Software
Development Software
EasyBuilder Pro
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
266 mm
Depth
40 mm
Height
196 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Safety
UL/cUL
Dimensions
Net Weight
1.25 kg
Gross Weight
1.54 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
