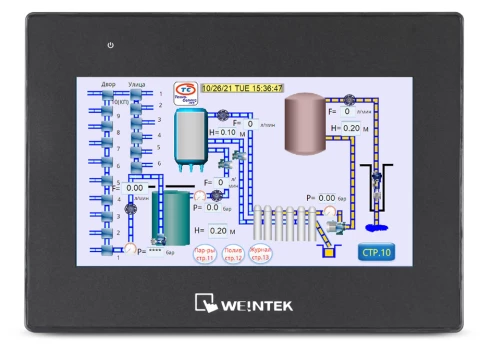

cMT2058XH

cMT2058XH

Weintek
SKU: 11106700
HMI with 4.3" 800x480 TFT LCD Display Resistive Touch Screen, Quad-core RISC CPU, 512MB RAM, 4GB Flash, 2xLAN, 3xCOM, 1xUSB 2.0, 24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
4.3 "
Maximum resolution
800x480 Dots
Brightness
530 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Resistive
Memory
Default on Board Memory
1 GB
Installed drive
Flash Memory Capacity
4000 MB
Ethernet
Total Ethernet
2
10/100 Mbit/s
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-485
1
RS-232/485
1
USB Total
1
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU
Software
Development Software
EasyBuilder Pro
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
128 mm
Depth
32 mm
Height
102 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.8 kg
Gross Weight
0.84 kg
