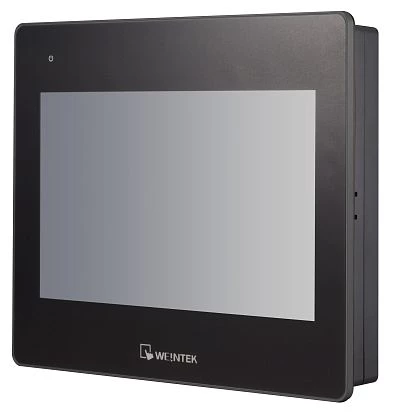

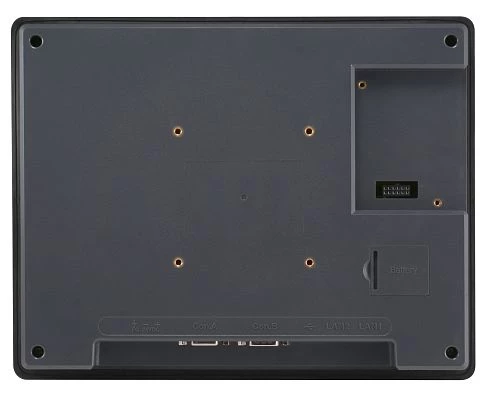

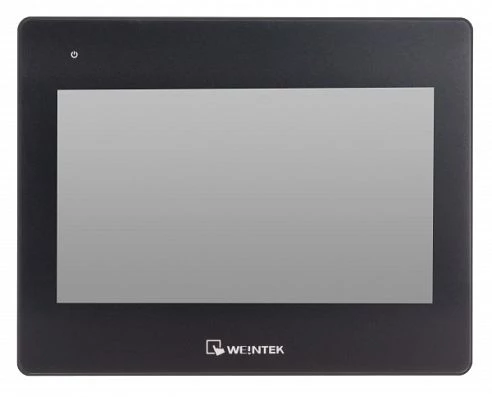

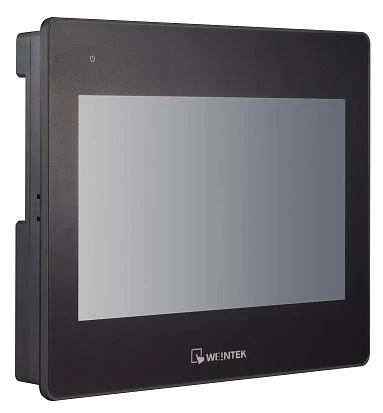

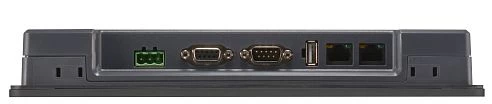

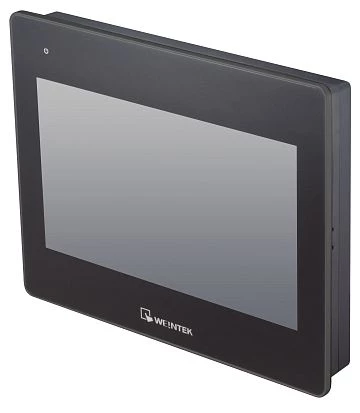

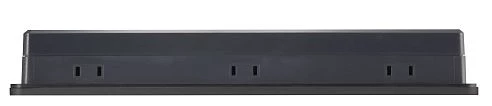

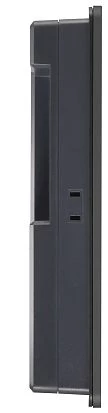

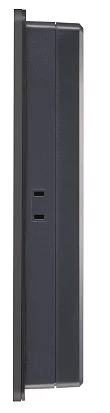

cMT2108X2

cMT2108X2

Weintek
SKU: 09638200
10.1" Panel HMI, IP66 Front, NEMA4, 1024x600, 350cd/m2, Resistive Touch, Quad-core RISC CPU, 1GB RAM, 4GB Flash, 1xGbE LAN, 1x100Mbit LAN, 2xDB9 (3xCOM), 1xUSB 2.0 (Host), 24VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Chassis
IP66
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1024x600 Dots
Brightness
350 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Resistive
Memory
Default on Board Memory
1 GB
Installed drive
Flash Memory Capacity
4 MB
Ethernet
Total Ethernet
2
10/100 Mbit/s
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
3
RS-232
1
RS-485
2
USB Total
1
Software
Development Software
EasyBuilder Pro
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
271 mm
Depth
38 mm
Height
213 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1.2 kg
Gross Weight
1.85 kg
