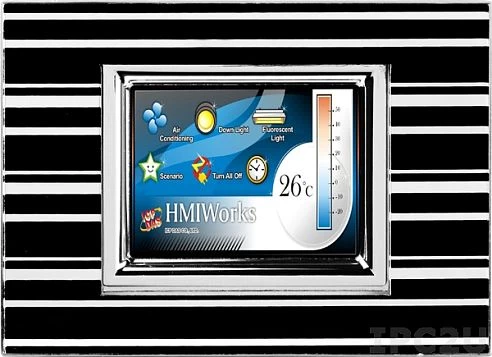

TPD-283U-M3

TPD-283U-M3

ICP DAS
SKU: 06845800
2.8" touch HMI device with Ethernet (10/100 Mbps)
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP40
Display
Display Type
LCD TFT
Diagonal
2.8 "
Maximum resolution
240x320 Dots
Brightness
160 Cd/m2
Touch Screen
Touch Screen Type
Resistive
Installed drive
Flash Memory Capacity
16 MB
Ethernet
10/100 Mbit/s
1
Interfaces
RS-485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, DCON master
Software
Development Software
HMIWorks
Programming Method
Ladder Diagram, C/C++
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
92 mm
Depth
31 mm
Height
127 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.36 kg
Gross Weight
0.36 kg
