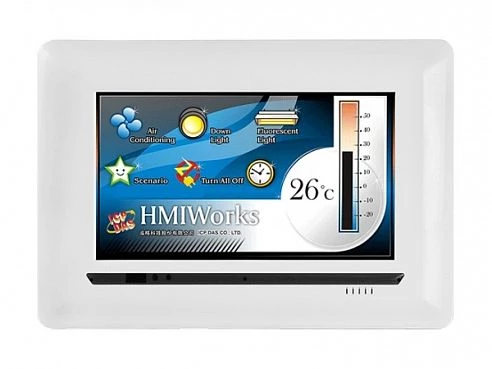

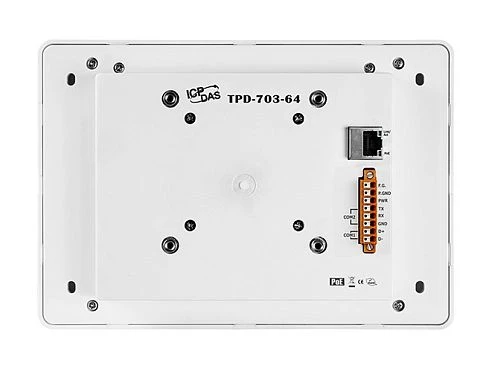

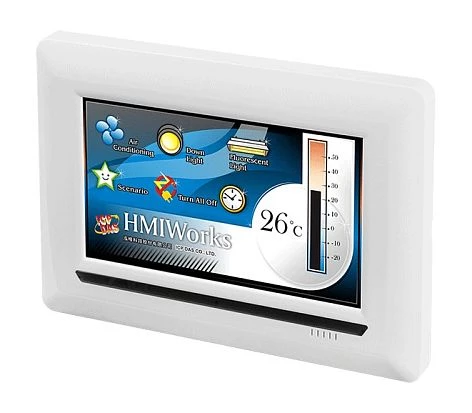

TPD-703-64

TPD-703-64

ICP DAS
SKU: 06845100
7" Touch HMI device with RS-232, RS-485, Ethernet (10/100 Mbps), PoE, RTC, 64 MB Flash, Suitable for the EWB-T70
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP40
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
800x480 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Resistive
Installed drive
Flash Memory Capacity
64 MB
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, DCON master
Software
Development Software
HMIWorks
Programming Method
Ladder Diagram, C/C++
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
217 mm
Depth
33 mm
Height
153 mm
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Gross Weight
0.81 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP40
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
800x480 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Resistive
Installed drive
Flash Memory Capacity
64 MB
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, DCON master
Software
Development Software
HMIWorks
Programming Method
Ladder Diagram, C/C++
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
217 mm
Depth
33 mm
Height
153 mm
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Gross Weight
0.81 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP40
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
800x480 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Resistive
Installed drive
Flash Memory Capacity
64 MB
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, DCON master
Software
Development Software
HMIWorks
Programming Method
Ladder Diagram, C/C++
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
217 mm
Depth
33 mm
Height
153 mm
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Gross Weight
0.81 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP40
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
800x480 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Resistive
Installed drive
Flash Memory Capacity
64 MB
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, DCON master
Software
Development Software
HMIWorks
Programming Method
Ladder Diagram, C/C++
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
217 mm
Depth
33 mm
Height
153 mm
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Gross Weight
0.81 kg

Documentation
TPD-703_TPD-703-64_Datasheet API User manual TPD/VPD Series HMI Programming Guide HMIWorks User Manual
Software
HMIWorks Edit Tool
Documentation
TPD-703_TPD-703-64_Datasheet API User manual TPD/VPD Series HMI Programming Guide HMIWorks User Manual
Software
HMIWorks Edit Tool
Documentation
TPD-703_TPD-703-64_Datasheet API User manual TPD/VPD Series HMI Programming Guide HMIWorks User Manual
Software
HMIWorks Edit Tool
Documentation
TPD-703_TPD-703-64_Datasheet API User manual TPD/VPD Series HMI Programming Guide HMIWorks User Manual
Software
HMIWorks Edit Tool
