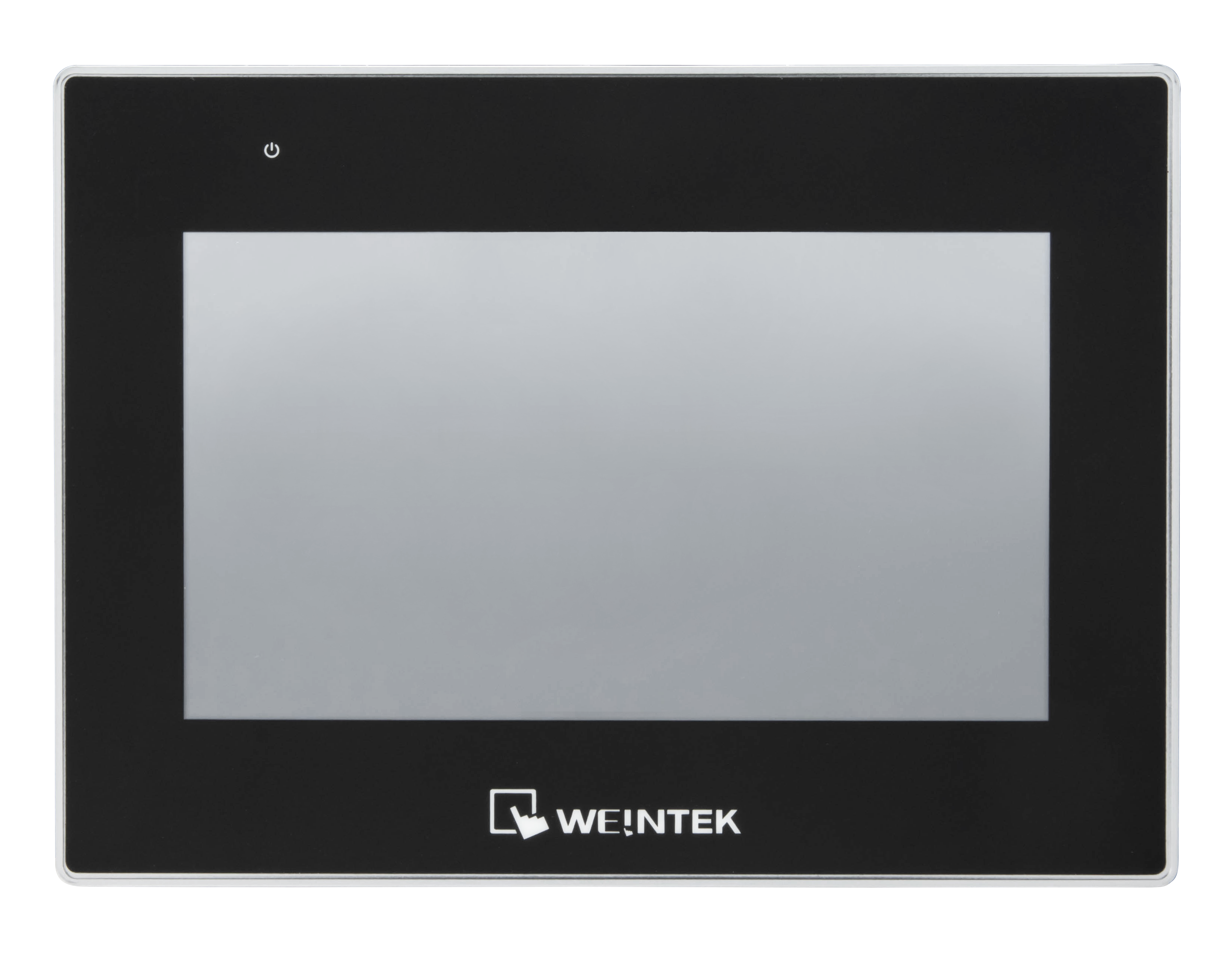

cMT3072XH2

cMT3072XH2

Weintek
SKU: 10936400
Cloud HMI panel, WVA LCD 7" (1024x600), 3xCOM, CAN, 2xLAN, 1xUSB, MPI 187.5, 10.5-28VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Protection Level of Front Side (Panel)
IP66, NEMA 4
Material Front Side (Panel)
Plastic
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
450 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Resistive
Memory
Default on Board Memory
1 GB
Installed drive
Flash Memory Capacity
4000 MB
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
1
RS-232/485
1
USB Total
1
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU, J1939, CANopen, CAN 2.0 A/B
Software
Development Software
EasyBuilder Pro
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
200.3 mm
Depth
35 mm
Height
146.3 mm
Operating Conditions
Operating Temperature
0..55 °C
Humidity
10-90%
Dimensions
Net Weight
0.83 kg
Gross Weight
0.83 kg
