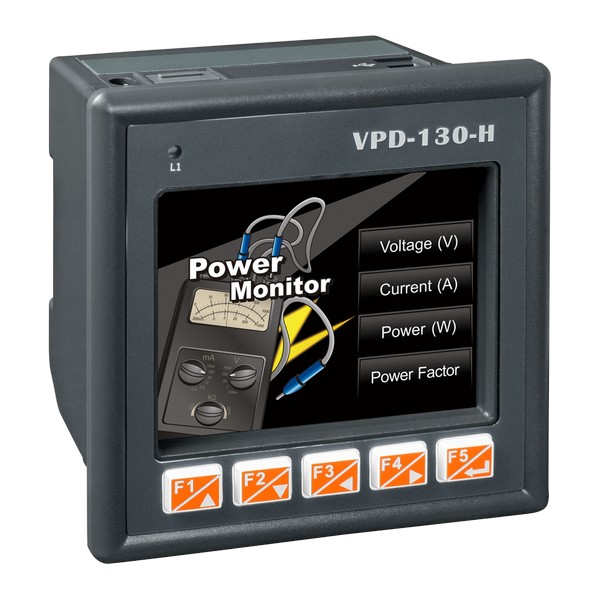

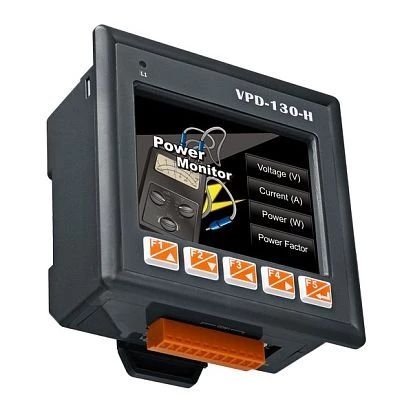

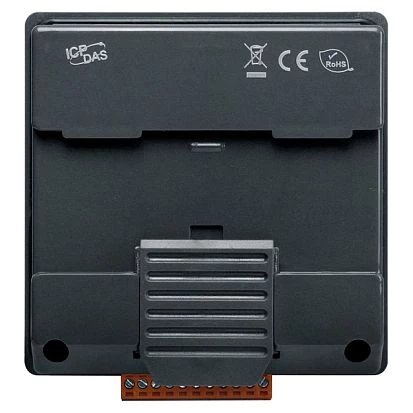

VPD-130

VPD-130

SKU: 05826600

3.5" touch HMI device with RS-232/RS-485, USB, RTC, Rubber Keypad

End-of-life product

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Panel, Wall

Protection Level of Chassis

IP65

Display

Display Type

LCD TFT

Diagonal

3.5 "

Brightness

270 Cd/m2

Touch Screen

Touch Screen Type

Resistive

Interfaces

RS-232/485

1

Software

Development Software

HMIWorks

Programming Method

Ladder Diagram, C/C++

Dimensions and weight

Width

103 mm

Depth

53 mm

Height

103 mm

Dimensions

Net Weight

0.2 kg

Gross Weight

0.35 kg

Documentation

Datasheet VPD-130(N)-H-V API User manual TPD/VPD Series HMI Programming Guide HMIWorks User Manual

Software

HMIWorks Edit Tool

VPD-132-H

ICP DAS VPD-132-H 3.5" Touch HMI device with RS-232/RS-485 x 2, USB, RTC, Rubber Keypad and support XV-board (RoHS)

VPD-130-H

ICP DAS VPD-130-H 3.5" touch HMI device with RS-232/RS-485, USB, RTC, Rubber Keypad

VPD-132N-H

ICP DAS VPD-132N-H 3.5" Touch HMI device, 2xRS-232/RS-485, USB, RTC, support XV-board (RoHS)

Request for replacement

SKU: 05826600

VPD-130

VPD-130

VPD-130

VPD-130
