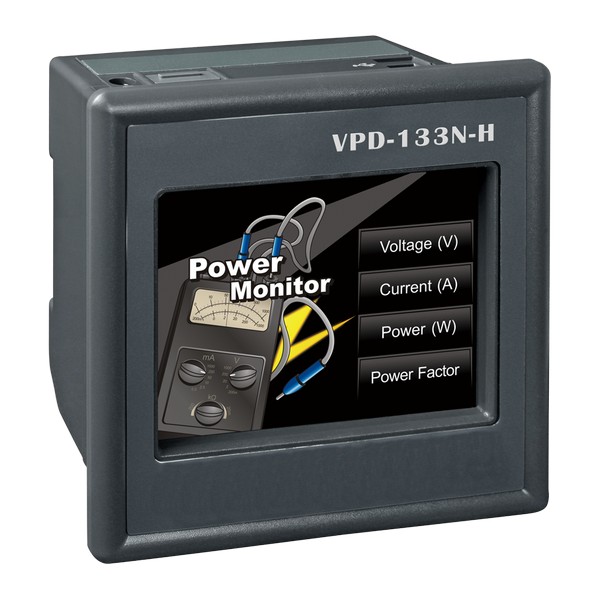

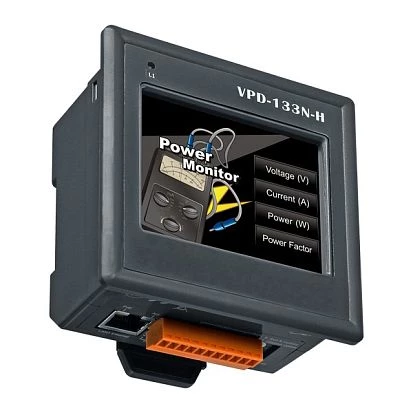

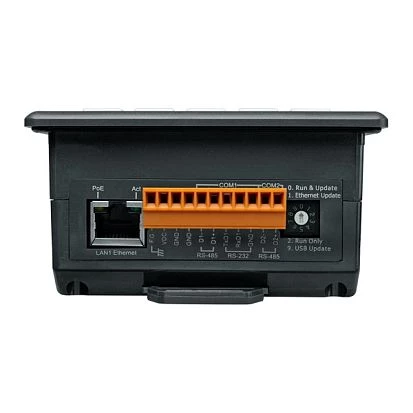

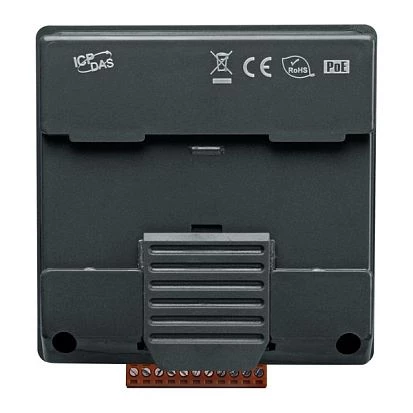

VPD-133N-H

VPD-133N-H

ICP DAS
SKU: 07677000
3.5" Touch HMI device with Ethernet, 2xRS-232/RS-485, USB, RTC, support XV-board (RoHS)
End-of-life product

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Panel
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
3.5 "
Maximum resolution
320x240 Dots
Brightness
270 Cd/m2
Touch Screen
Touch Screen Type
Resistive
Installed drive
Flash Memory Capacity
8 MB
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-485
1
RS-232/485
1
Supported Protocols
Industrial Protocols
Modbus RTU master, Modbus RTU slave, DCON master
Software
Development Software
HMIWorks
Programming Method
Ladder Diagram, C/C++
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
103 mm
Depth
53 mm
Height
103 mm
Operating Conditions
Operating Temperature
-20..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
