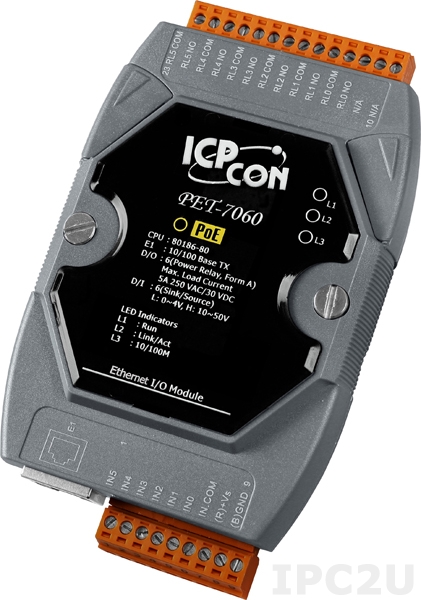

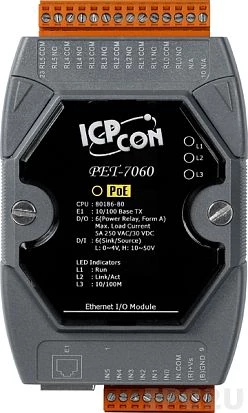

PET-7060

PET-7060

ICP DAS
SKU: 55160700
6-channel Power Relay Output 5A@250VAC/24VDC and 6-channel Isolation Digital Input 10-50VDC with PoE
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Input
Total channels of digital input
6
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Sink, Source
Counter
500Hz, 32 bit
Digital Output
Total channels of digital output
6
Type
Electromagnitic relay
Relay (Form A)
6
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
