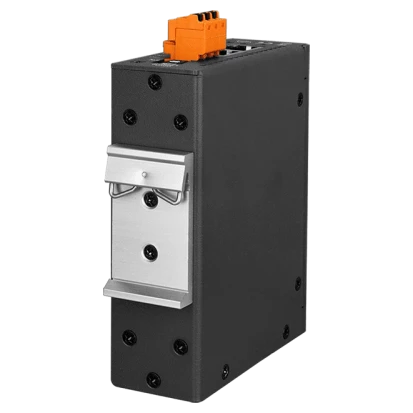

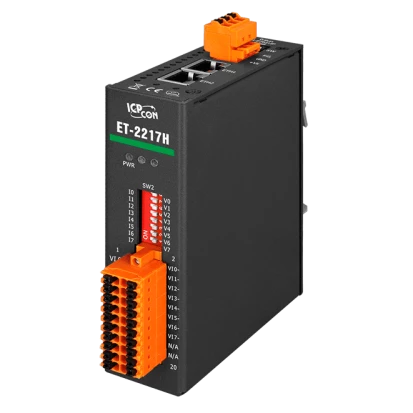

ET-2217H

ET-2217H

ICP DAS
SKU: 80128800
Ethernet I/O Module, 32-bit ARM, 2x10/100Base-TX RJ-45, 8xAI, 10..48 VDC, Operating Temperature -25..75C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus UDP master, MQTT
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Sampling rate
8000 Hz
System Power Input
Input Voltage DC
10..48 V
Dimensions and weight
Width
33 mm
Depth
127 mm
Height
117 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
