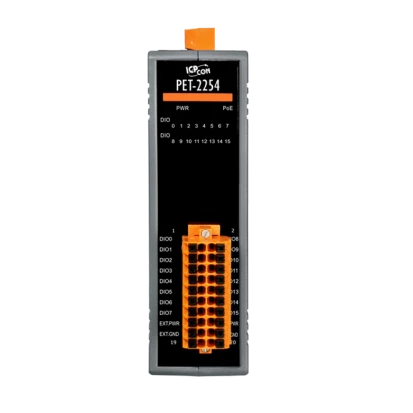

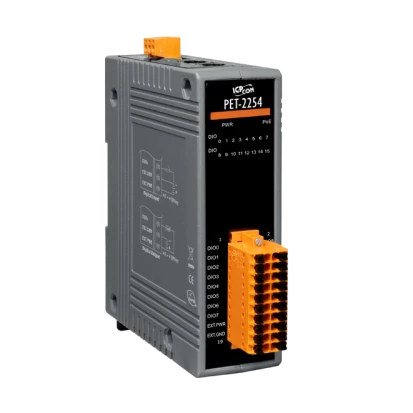

PET-2254

PET-2254

ICP DAS
SKU: 10637300
Ethernet I/O Module with 2-port Ethernet Switch, 16-ch Universal DIO (DO Max. Load Current: 100 mA) (RoHS), PoE, 10-48VDC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Input
Total channels of digital input
16
Type
Dry contact
Sink/Source
Sink, Source
Counter
3KHz
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
5~30 V
Max. load current
100 mA
System Power Input
Input Voltage DC
10..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
33 mm
Depth
127 mm
Height
108 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Gross Weight
0.5 kg
