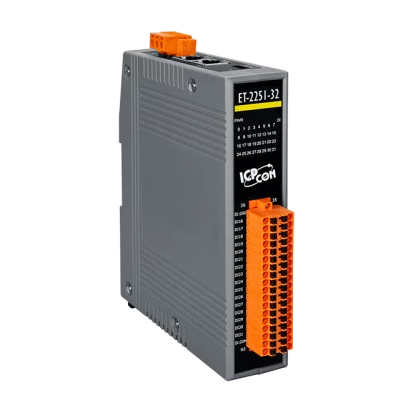

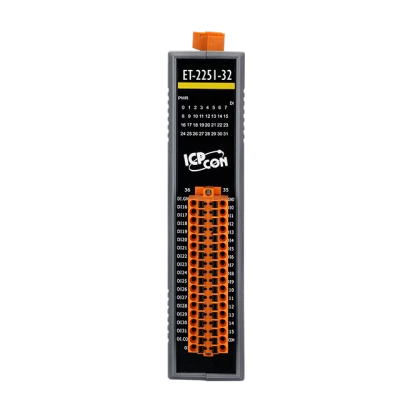

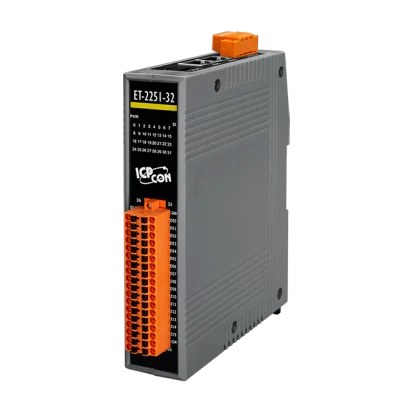

ET-2251-32

ET-2251-32

ICP DAS
SKU: 10328100
Ethernet I/O Module with 2-port Ethernet Switch, 32-ch wet contact and dry contact DI (RoHS), 10-48VDC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave, MQTT
Digital Input
Total channels of digital input
32
Type
Dry contact, Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
5~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter capacity
32 Bit
Max frequency
2.5 kHz
Dimensions and weight
Width
31 mm
Depth
157 mm
Height
126 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave, MQTT
Digital Input
Total channels of digital input
32
Type
Dry contact, Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
5~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter capacity
32 Bit
Max frequency
2.5 kHz
Dimensions and weight
Width
31 mm
Depth
157 mm
Height
126 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave, MQTT
Digital Input
Total channels of digital input
32
Type
Dry contact, Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
5~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter capacity
32 Bit
Max frequency
2.5 kHz
Dimensions and weight
Width
31 mm
Depth
157 mm
Height
126 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave, MQTT
Digital Input
Total channels of digital input
32
Type
Dry contact, Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
5~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter capacity
32 Bit
Max frequency
2.5 kHz
Dimensions and weight
Width
31 mm
Depth
157 mm
Height
126 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
Documentation
(P)ET-2251_(P)ET-2251-32_en.pdf ET-2200_user_manual_en.pdf
Software
eSearch Utility
Documentation
(P)ET-2251_(P)ET-2251-32_en.pdf ET-2200_user_manual_en.pdf
Software
eSearch Utility
Documentation
(P)ET-2251_(P)ET-2251-32_en.pdf ET-2200_user_manual_en.pdf
Software
eSearch Utility
Documentation
(P)ET-2251_(P)ET-2251-32_en.pdf ET-2200_user_manual_en.pdf
Software
eSearch Utility
