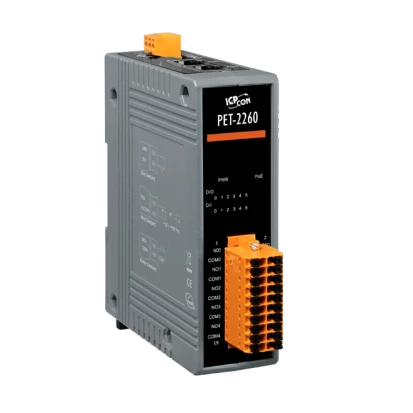

PET-2260

PET-2260

ICP DAS
SKU: 10637600
Ethernet I/O Module with 6-ch Digital Input 10-50VDC and 6-ch Relay Output 5 A @ 250 VAC/24 VDC, 10-48VDC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
2
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Input
Total channels of digital input
6
Type
Wet contact
Level of Logic "0"
0~3.5 V
Level of Logic "1"
10~50 V
Sink/Source
Sink, Source
Counter
3KHz
Digital Output
Total channels of digital output
6
Type
Electromagnitic relay
Relay (Form A)
6
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
System Power Input
Input Voltage DC
10..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
33 mm
Depth
127 mm
Height
99 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Gross Weight
0.3 kg
