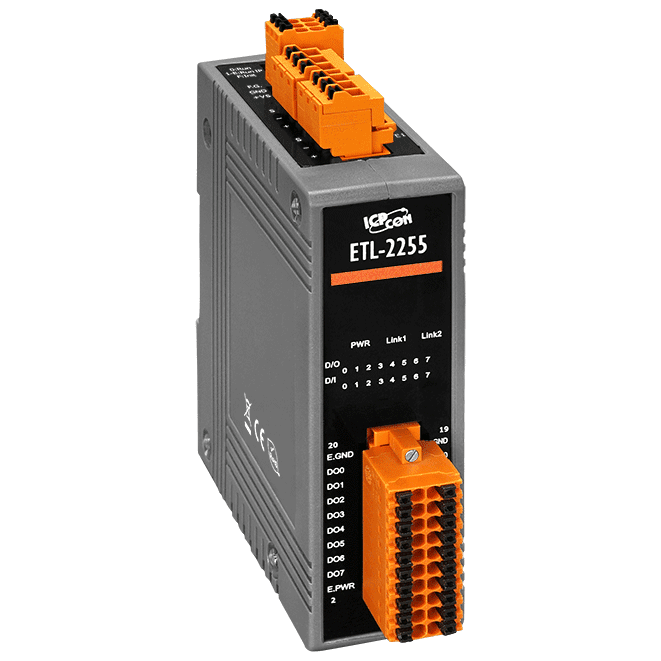

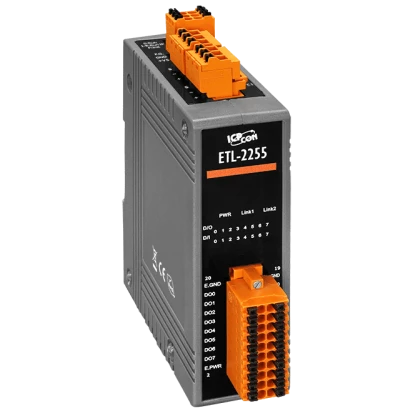

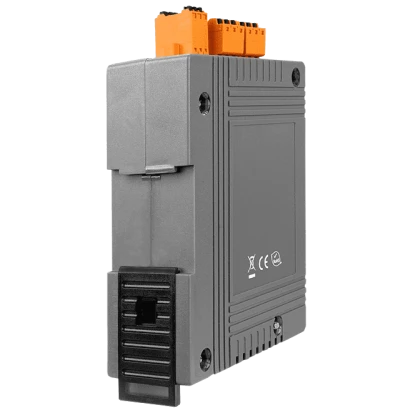

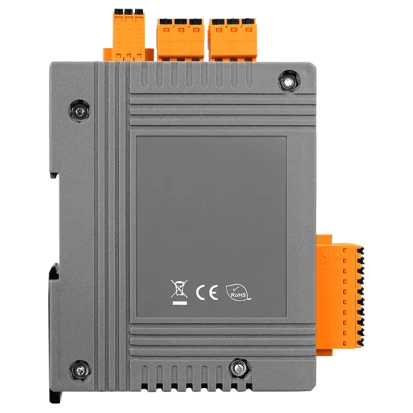

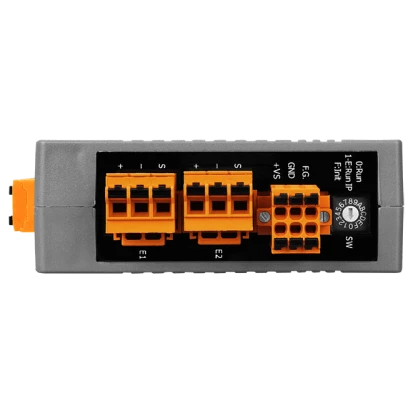

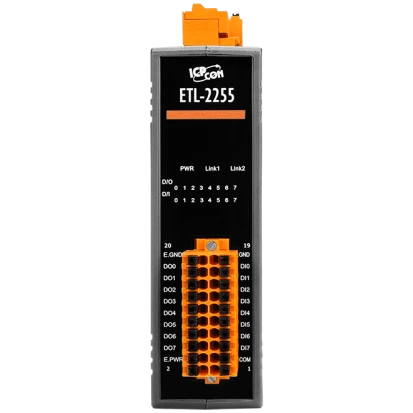

ETL-2255

ETL-2255

ICP DAS
SKU: 80264700
Ethernet I/O Module, 32-bit ARM CPU, 8xDI, 8xDO, 2x10Base-T1L, Operating Temperature -25..75 C
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus UDP master, MQTT
Digital Input
Total channels of digital input
8
Digital Output
Total channels of digital output
8
Dimensions and weight
Width
33 mm
Depth
136 mm
Height
108 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.2 kg
Gross Weight
0.5 kg
Construction
