PET-AR400

PET-AR400

ICP DAS
SKU: 10297400

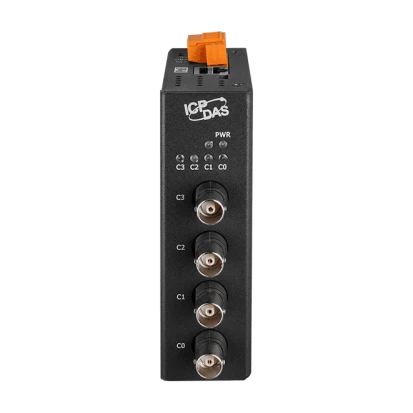

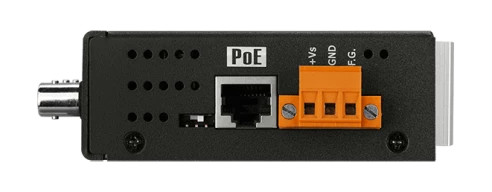

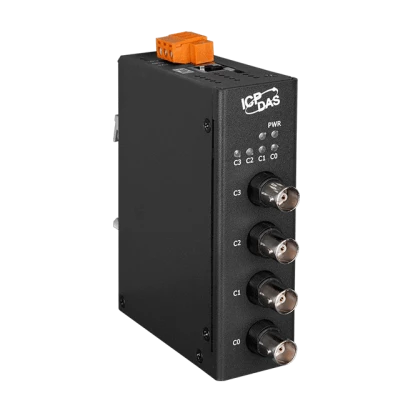

PoE Ethernet High Speed Data Acquisition Module, 4-ch Accelerometer (IEPE) Inputs, 12-48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Supported Protocols
Industrial Protocols
Modbus TCP server
Analog Input
Total channels of analog input
4
Number of Bits
24 Bit
Voltage range
+/-10 V
Sampling rate
128000 Hz
Differential channels
4
System Power Input
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
33 mm
Depth
120 mm
Height
108 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.25 kg
Gross Weight
0.25 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Supported Protocols
Industrial Protocols
Modbus TCP server
Analog Input
Total channels of analog input
4
Number of Bits
24 Bit
Voltage range
+/-10 V
Sampling rate
128000 Hz
Differential channels
4
System Power Input
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
33 mm
Depth
120 mm
Height
108 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.25 kg
Gross Weight
0.25 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Supported Protocols
Industrial Protocols
Modbus TCP server
Analog Input
Total channels of analog input
4
Number of Bits
24 Bit
Voltage range
+/-10 V
Sampling rate
128000 Hz
Differential channels
4
System Power Input
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
33 mm
Depth
120 mm
Height
108 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.25 kg
Gross Weight
0.25 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Supported Protocols
Industrial Protocols
Modbus TCP server
Analog Input
Total channels of analog input
4
Number of Bits
24 Bit
Voltage range
+/-10 V
Sampling rate
128000 Hz
Differential channels
4
System Power Input
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
33 mm
Depth
120 mm
Height
108 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.25 kg
Gross Weight
0.25 kg
Documentation
User Manual PET-AR400 Datasheet PET-AR400
Documentation
User Manual PET-AR400 Datasheet PET-AR400
Documentation
User Manual PET-AR400 Datasheet PET-AR400
Documentation
User Manual PET-AR400 Datasheet PET-AR400
