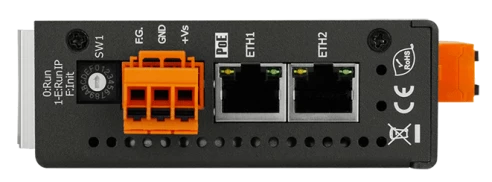

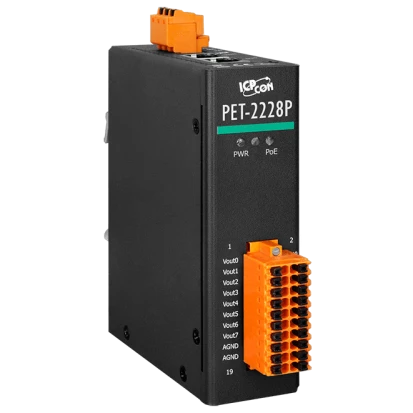

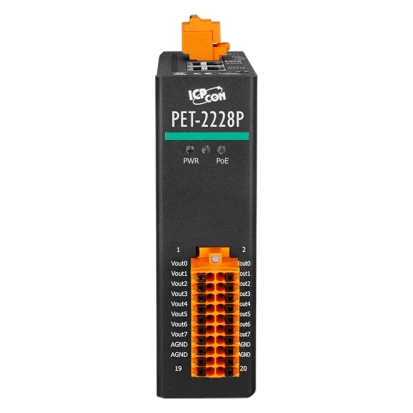

PET-2228P

PET-2228P

ICP DAS
SKU: 80084800
Ethernet I/O Module, 2x10/100Base-TX with PoE, 8-channel differential analog outputs 0..5V/0..20mA/4..20mA, 10..48VDC, Operating Temperature -25..75C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration

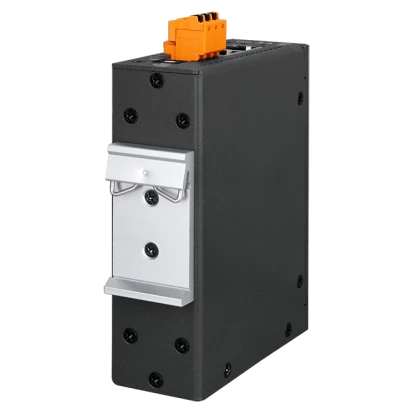

DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave, MQTT
Analog Output
Channels of analog input
8
DAC Bit Rate
16 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
System Power Input
Input Voltage DC
10..48 V
Dimensions and weight
Width
33 mm
Depth
117 mm
Height
126 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
