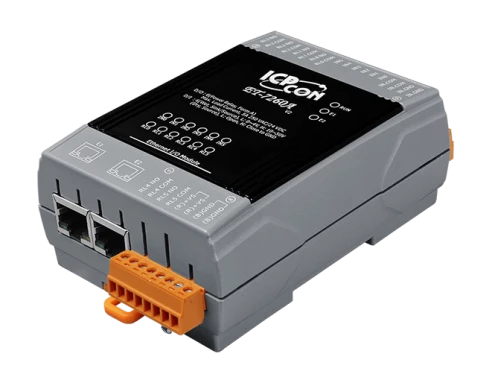

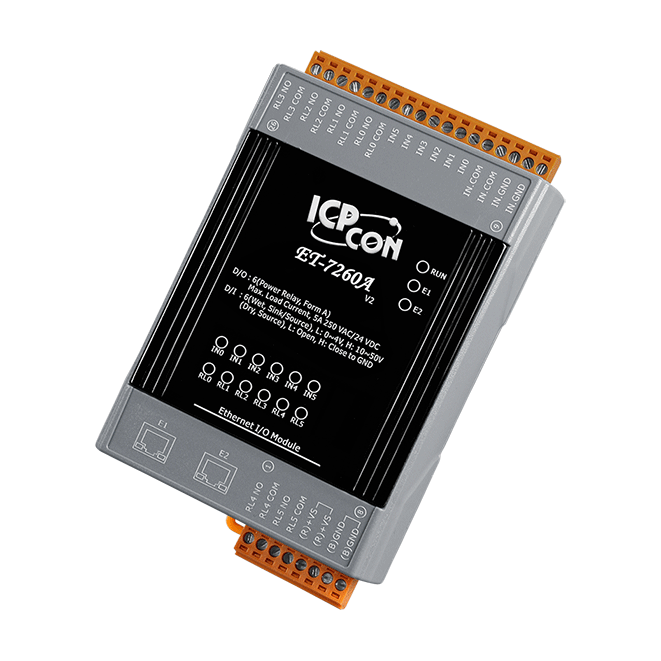

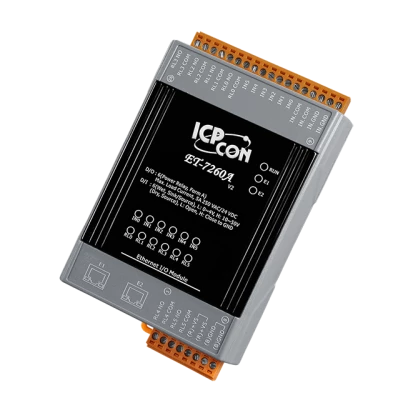

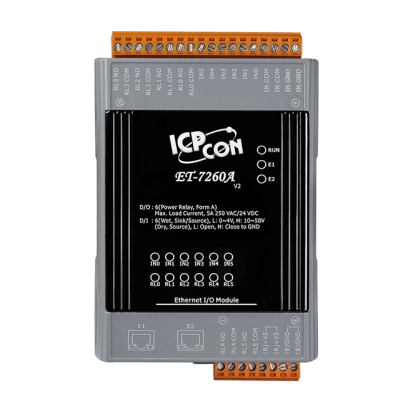

ET-7260A

ET-7260A

ICP DAS
SKU: 10082500
Ethernet I/O Module with 2-port Ethernet Switch, with 6-ch Relay Output and 6-ch DI (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server
Digital Input
Total channels of digital input
6
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter
100Hz, 32 bit
Digital Output
Total channels of digital output
6
Type
Electromagnitic relay
Relay (Form A)
6
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
76 mm
Depth
38 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server
Digital Input
Total channels of digital input
6
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter
100Hz, 32 bit
Digital Output
Total channels of digital output
6
Type
Electromagnitic relay
Relay (Form A)
6
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
76 mm
Depth
38 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server
Digital Input
Total channels of digital input
6
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter
100Hz, 32 bit
Digital Output
Total channels of digital output
6
Type
Electromagnitic relay
Relay (Form A)
6
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
76 mm
Depth
38 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server
Digital Input
Total channels of digital input
6
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter
100Hz, 32 bit
Digital Output
Total channels of digital output
6
Type
Electromagnitic relay
Relay (Form A)
6
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
76 mm
Depth
38 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
Documentation
ET-7260A_PET-7260A_en.pdf pet_et-7x00_user_manual_en.pdf pet_et7x00_register_table.pdf
Software
eSearch Utility
Documentation
ET-7260A_PET-7260A_en.pdf pet_et-7x00_user_manual_en.pdf pet_et7x00_register_table.pdf
Software
eSearch Utility
Documentation
ET-7260A_PET-7260A_en.pdf pet_et-7x00_user_manual_en.pdf pet_et7x00_register_table.pdf
Software
eSearch Utility
Documentation
ET-7260A_PET-7260A_en.pdf pet_et-7x00_user_manual_en.pdf pet_et7x00_register_table.pdf
Software
eSearch Utility
