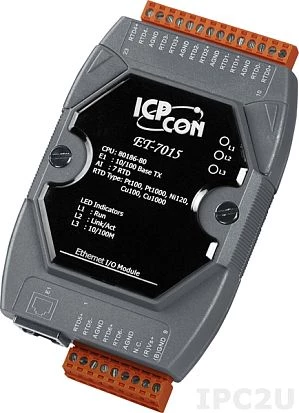

ET-7015

ET-7015

ICP DAS
SKU: 55184700
Measure temperature with RTD Sensor
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Analog Input
Total channels of analog input
7
Number of Bits
16 Bit
Sampling rate
12 Hz
Differential channels
7
Thermal resistance
Pt100, Pt1000, Ni120, Cu100, Cu1000
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
