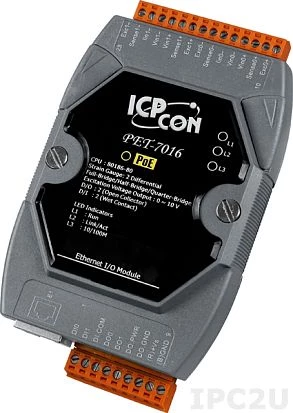

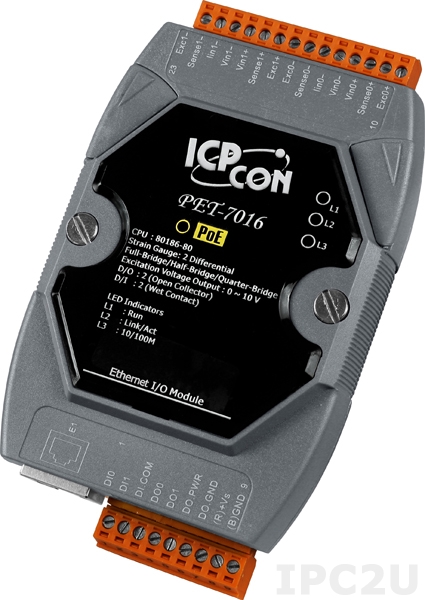

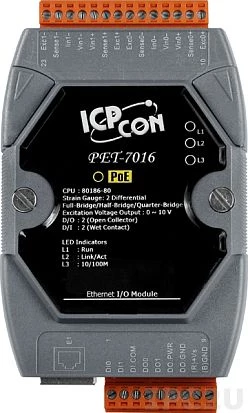

PET-7016

PET-7016

ICP DAS
SKU: 66185200
2-channel strain gauge, 1 AO, 2-channel digital input and 2-channel digital Output PoE module (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Analog Input
Total channels of analog input
2
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Differential channels
2
Load Cell
6 wire Full Bridge, Half Bridge, Quarter Bridge
Digital Input
Total channels of digital input
2
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~50 V
Sink/Source
Sink, Source
Counter
100Hz, 32 bit
Digital Output
Total channels of digital output
2
Type
Open collector
Sink/Source
Sink
Output voltage
5~50 V
Max. load current
700 mA
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
