ET-7028

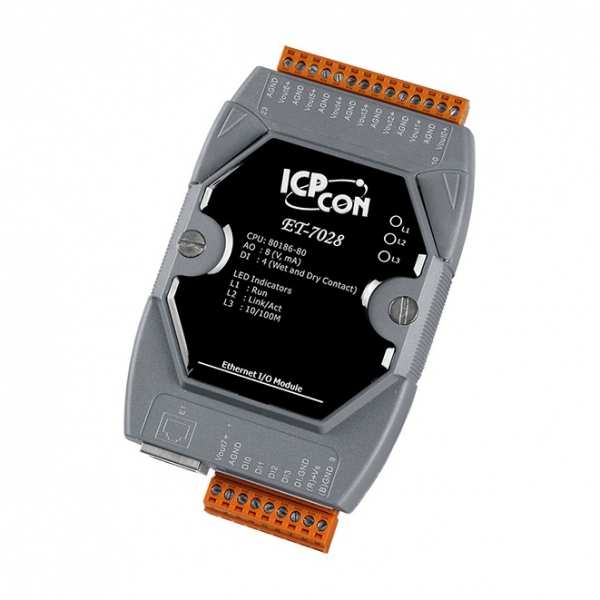

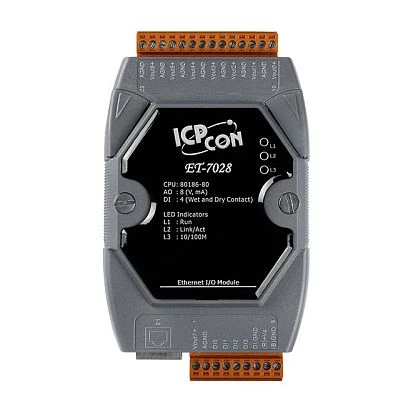

ET-7028

ICP DAS
SKU: 06813400
Ethernet I/O Module with 8-channels AO
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Analog Output
Channels of analog input
8
DAC Bit Rate
12 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Analog Output
Channels of analog input
8
DAC Bit Rate
12 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Analog Output
Channels of analog input
8
DAC Bit Rate
12 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Analog Output
Channels of analog input
8
DAC Bit Rate
12 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
Documentation
(P)ET-7028_(P)ET-7228_datasheet et7000_et7200_register_table_v110
Software
eSearch Utility
Documentation
(P)ET-7028_(P)ET-7228_datasheet et7000_et7200_register_table_v110
Software
eSearch Utility
Documentation
(P)ET-7028_(P)ET-7228_datasheet et7000_et7200_register_table_v110
Software
eSearch Utility
Documentation
(P)ET-7028_(P)ET-7228_datasheet et7000_et7200_register_table_v110
Software
eSearch Utility
