G900G7
Winmate
SKU: 80210600

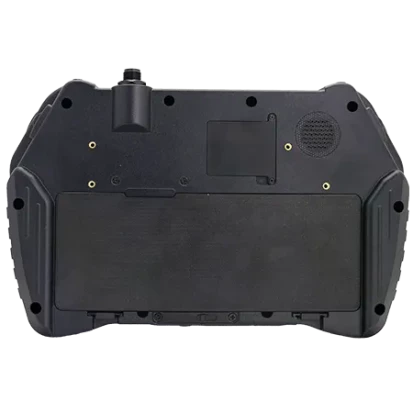

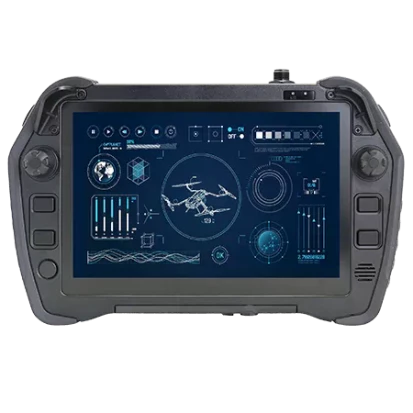

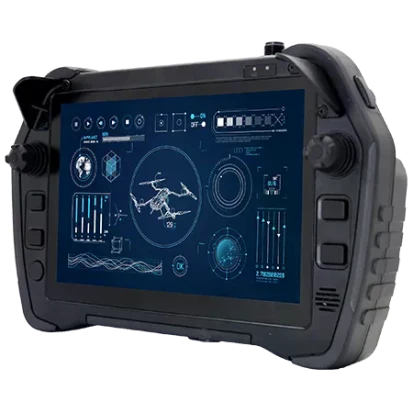

8" Rugged Robotic Controller, IP65 Full, 1920x1200, 1000cd/m2, Optical Bond with AG, PCAP Touch, Mediatek Genio 510 SoC, 4GB LPDDR4x RAM, 64GB eMMC, MicroHDMI, 1xM12 LAN, 1xUSB-C, 1xUSB-A, WiFi/BT/GPS, 3500mAh Bat, 20VDC-in with 100W PSU, Android 13
Price on request
Available
Available
Construction
Construction Chassis
ABS plastic chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
1000 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
MediaTek MT8370 (Genio 510)
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
Micro HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
2
USB 2.0
1
USB v3.x
1
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Antenna characteristics
Bluetooth
v5.3
Keyboard / Pointing Devices
Type Mouse
Joystick
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off
Connectors
Connectors
1xUSB, Micro HDMI, USB type C, M12 LAN
System Power Input
Input Voltage DC
20..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
100 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3500 mA*h
RunTime Battery 1
5.5 h
Battery 1 Hotswap
No
Software
Operating System Installed
Android
Dimensions and weight
Width
259.8 mm
Height
166.1 mm
Depth
44.2 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
1.1 kg
Gross Weight
1.6 kg
Construction
Construction Chassis
ABS plastic chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
1000 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
MediaTek MT8370 (Genio 510)
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
Micro HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
2
USB 2.0
1
USB v3.x
1
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Antenna characteristics
Bluetooth
v5.3
Keyboard / Pointing Devices
Type Mouse
Joystick
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off
Connectors
Connectors
1xUSB, Micro HDMI, USB type C, M12 LAN
System Power Input
Input Voltage DC
20..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
100 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3500 mA*h
RunTime Battery 1
5.5 h
Battery 1 Hotswap
No
Software
Operating System Installed
Android
Dimensions and weight
Width
259.8 mm
Height
166.1 mm
Depth
44.2 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
1.1 kg
Gross Weight
1.6 kg
Construction
Construction Chassis
ABS plastic chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
1000 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
MediaTek MT8370 (Genio 510)
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
Micro HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
2
USB 2.0
1
USB v3.x
1
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Antenna characteristics
Bluetooth
v5.3
Keyboard / Pointing Devices
Type Mouse
Joystick
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off
Connectors
Connectors
1xUSB, Micro HDMI, USB type C, M12 LAN
System Power Input
Input Voltage DC
20..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
100 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3500 mA*h
RunTime Battery 1
5.5 h
Battery 1 Hotswap
No
Software
Operating System Installed
Android
Dimensions and weight
Width
259.8 mm
Height
166.1 mm
Depth
44.2 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
1.1 kg
Gross Weight
1.6 kg
Construction
Construction Chassis
ABS plastic chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
1000 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
MediaTek MT8370 (Genio 510)
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
Micro HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
2
USB 2.0
1
USB v3.x
1
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Antenna characteristics
Bluetooth
v5.3
Keyboard / Pointing Devices
Type Mouse
Joystick
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off
Connectors
Connectors
1xUSB, Micro HDMI, USB type C, M12 LAN
System Power Input
Input Voltage DC
20..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
100 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3500 mA*h
RunTime Battery 1
5.5 h
Battery 1 Hotswap
No
Software
Operating System Installed
Android
Dimensions and weight
Width
259.8 mm
Height
166.1 mm
Depth
44.2 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
1.1 kg
Gross Weight
1.6 kg
