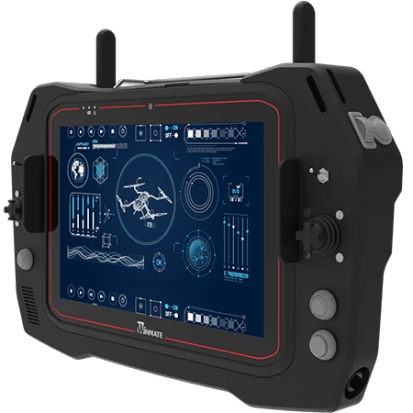

G101TG

G101TG

Winmate
SKU: 10325000
10.1" Rugged Tablet PC, 1920x1200, 800 cd/m2, PCAP Touch, Intel Core i5-1135G7 1.8GHz, 8GB DDR4 RAM, 128GB M.2 SSD, 1xUSB, HDMI, Wi-Fi, BT, GNSS, Audio, microSDXC and SIM slots, HotSwap Batt 11.4V 3500MAh Li-Poly, Win 10 IoT Enterprise Value
Price on request
Available on order
Available on order
Construction
Construction Chassis
Rubber
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Brightness
800 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Max CPU frequency
4.2 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Maximum Memory
32 GB
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
HDMI
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
1
USB 2.0
1
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
128 GB
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS, GLONASS
Sensors
Light Sensor, G-sensor, Gyroscope
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.0
LED / Controls
Controls
Control Buttons
System Power Input
Input Voltage DC
19..19 V
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3500 mA*h
RunTime Battery 1
10 h
Battery 1 Hotswap
No
Additional Battery Type
Li‑ion
Additional Battery Capacity
3500 mA*h
RunTime Battery 2
10 h
Additional Battery Hotswap
Yes
Software
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
366 mm
Height
219 mm
Depth
49.5 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Vibration
MIL-STD-810H Method 514.8 Procedure I
Shock
MIL-STD-810H Method 516.8 Procedure I
Dimensions
Net Weight
1.1 kg
Gross Weight
2 kg
