302MD-Medical-Tablet--M
DT Research
SKU: 80139300

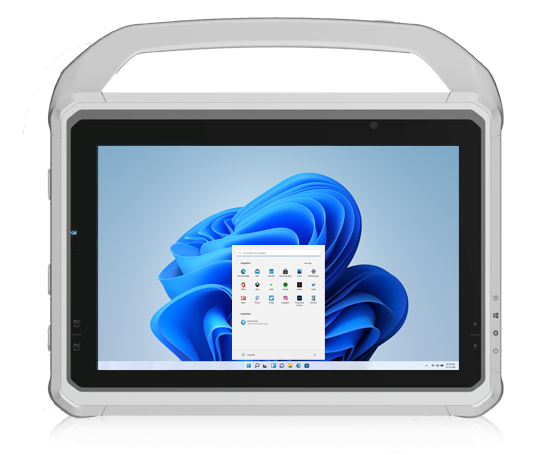

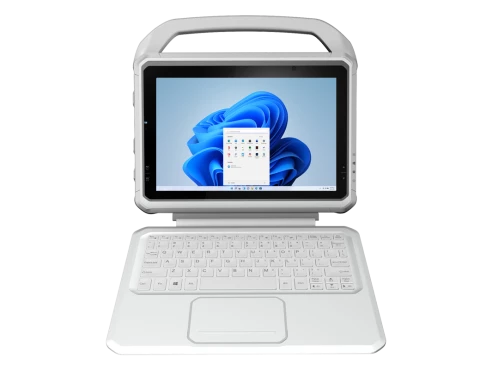

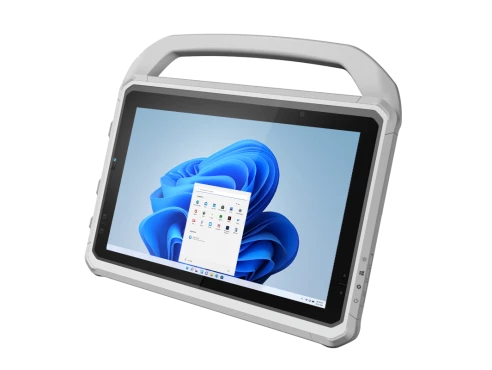

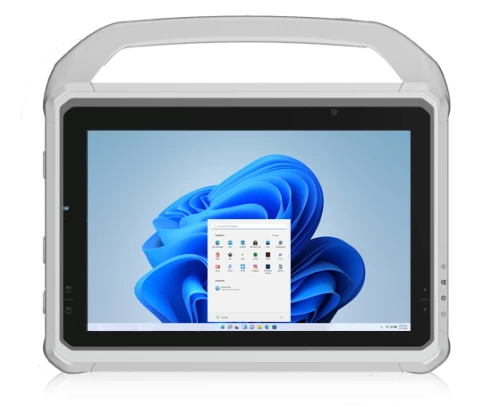

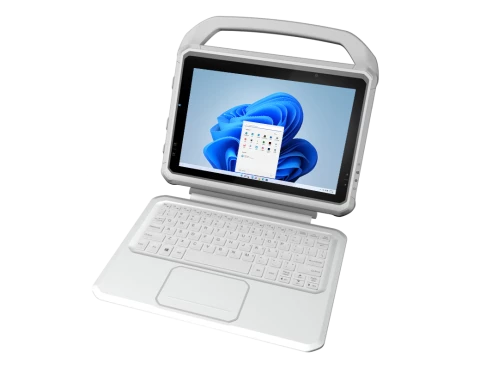

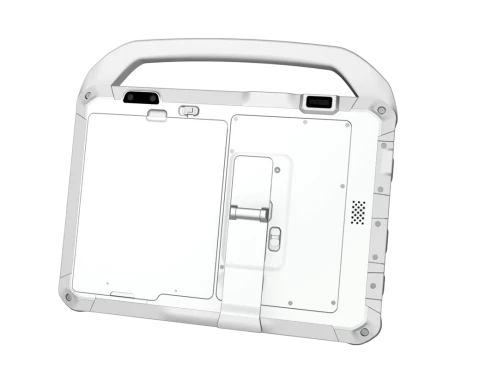

DT Research Rugged Medical Tablet 10.1", IP65 Full with anti-microbial coating, 1920x1200, 800cd/m2, Intel 13th Gen Core i5/i7 CPU, 1xGbE LAN, 2xUSB 3.2, Opt. (LTE/GPS/RFID/2D Barcode), Limited warranty - 3 years
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Plastic component
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Socket
FCBGA1744
CPU Support Type
Core i5, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
Additional Functions
Camera Frontside
5 MP
Rear Camera
8 MP
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.2
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
RJ45 Ethernet, 1xUSB, Mic In, Line Out, DC Input, USB type C
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3800 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
272 mm
Height
195.6 mm
Depth
20 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE/FCC
Medicine
IEC 60601-1
Radio
rcm
Dimensions
Net Weight
1.32 kg
Gross Weight
1.85 kg
