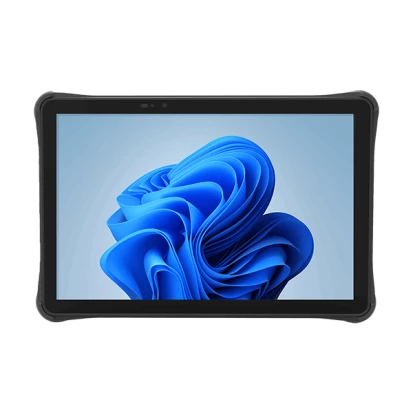

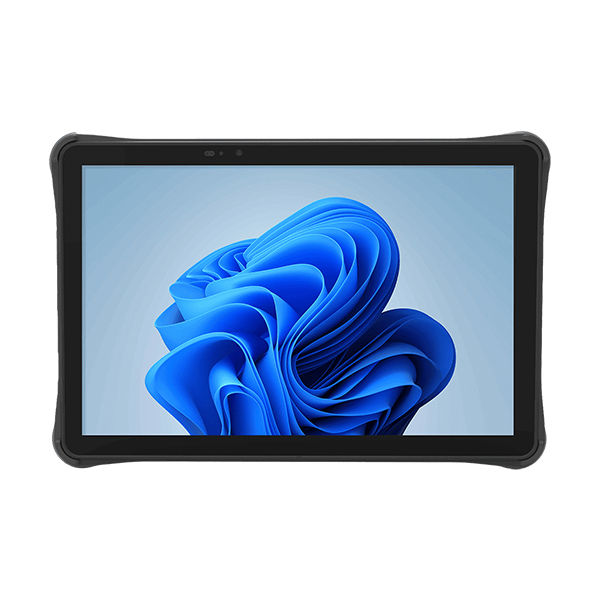

ART10-ECA
Arbor
SKU: 80201300
10.1" Rugged Tablet PC, IP65, 1920x1200, 400cd/m2, PCAP Touch, Intel Twin Lake N150 3.6GHz CPU, 8GB LPDDR5 RAM, 128GB UFS Flash, 1xUSB 3.0, 1xUSB Type-C PD/DP Alt., 5/5MP R/F Cam., WiFi6E/BT5.4, Audio, 5000mAh Bat., 20VDC-in with 45W Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis, Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N150
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
Type C DP
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
2
USB v3.x
2
Installed drive
Drive Type
Flash
Storage Form-Factor
UFS
1st Storage Capacity
128 GB
Additional Functions
Camera Frontside
5 MP
Rear Camera
5 MP
GPS
Optional
Barcode Scanner
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.4
LED / Controls
Controls
On/Off, Volume Keys
Connectors
Connectors
1xUSB, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
20..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
45 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
5000 mA*h
Battery 1 Hotswap
No
Software
Operating System Installed
Windows IoT Enterprise 11
Dimensions and weight
Width
246.1 mm
Height
164.2 mm
Depth
14.9 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
Safety
CCC
Dimensions
Net Weight
0.95 kg
Gross Weight
1.3 kg
Construction
Construction Chassis
Plastic Chassis, Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N150
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
Type C DP
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
2
USB v3.x
2
Installed drive
Drive Type
Flash
Storage Form-Factor
UFS
1st Storage Capacity
128 GB
Additional Functions
Camera Frontside
5 MP
Rear Camera
5 MP
GPS
Optional
Barcode Scanner
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.4
LED / Controls
Controls
On/Off, Volume Keys
Connectors
Connectors
1xUSB, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
20..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
45 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
5000 mA*h
Battery 1 Hotswap
No
Software
Operating System Installed
Windows IoT Enterprise 11
Dimensions and weight
Width
246.1 mm
Height
164.2 mm
Depth
14.9 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
Safety
CCC
Dimensions
Net Weight
0.95 kg
Gross Weight
1.3 kg
Construction
Construction Chassis
Plastic Chassis, Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N150
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
Type C DP
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
2
USB v3.x
2
Installed drive
Drive Type
Flash
Storage Form-Factor
UFS
1st Storage Capacity
128 GB
Additional Functions
Camera Frontside
5 MP
Rear Camera
5 MP
GPS
Optional
Barcode Scanner
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.4
LED / Controls
Controls
On/Off, Volume Keys
Connectors
Connectors
1xUSB, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
20..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
45 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
5000 mA*h
Battery 1 Hotswap
No
Software
Operating System Installed
Windows IoT Enterprise 11
Dimensions and weight
Width
246.1 mm
Height
164.2 mm
Depth
14.9 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
Safety
CCC
Dimensions
Net Weight
0.95 kg
Gross Weight
1.3 kg
Construction
Construction Chassis
Plastic Chassis, Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N150
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
Type C DP
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
2
USB v3.x
2
Installed drive
Drive Type
Flash
Storage Form-Factor
UFS
1st Storage Capacity
128 GB
Additional Functions
Camera Frontside
5 MP
Rear Camera
5 MP
GPS
Optional
Barcode Scanner
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.4
LED / Controls
Controls
On/Off, Volume Keys
Connectors
Connectors
1xUSB, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
20..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
45 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
5000 mA*h
Battery 1 Hotswap
No
Software
Operating System Installed
Windows IoT Enterprise 11
Dimensions and weight
Width
246.1 mm
Height
164.2 mm
Depth
14.9 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
Safety
CCC
Dimensions
Net Weight
0.95 kg
Gross Weight
1.3 kg
