323PA/MD-Medical-Tablet--M
DT Research
SKU: 80139200

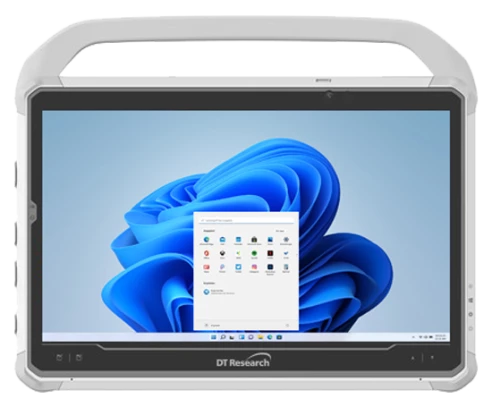

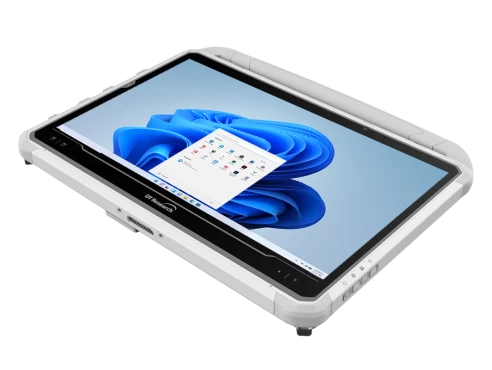

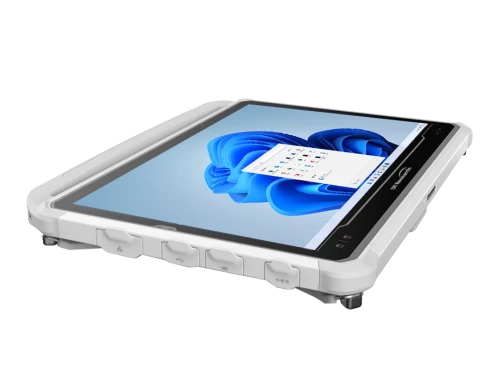

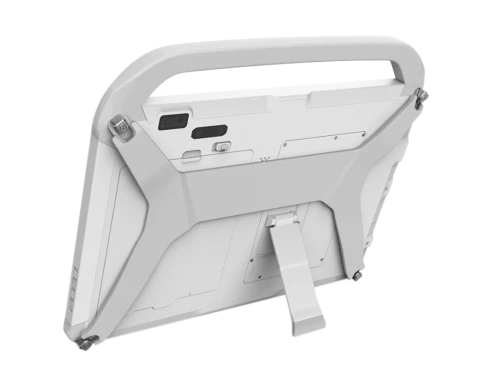

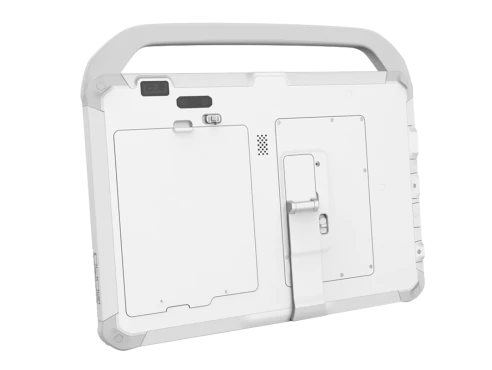

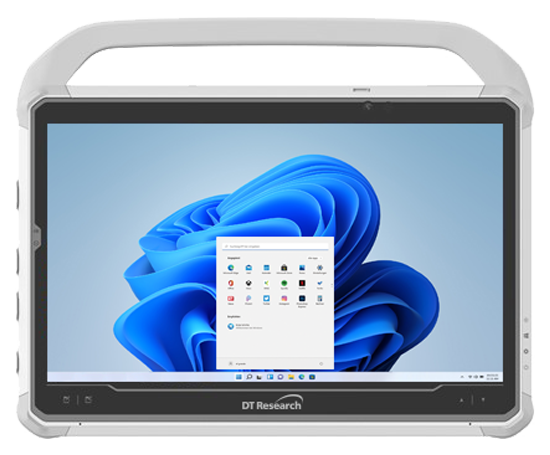

13.3" Rugged Medical Tablet, IP65, 1920x1200, 1000cd/m2, PCAP Touch, Intel Core Ultra 5/7 CPU, Up to 32GB DDR5 RAM, Up to 4TB M.2 SSD, 1xGbE LAN, 2xUSB 3.2, WiFi/BT, 13MP Cam., Opt. (LTE/GPS/RFID/Smart Card/2D Barcode), 3800mAh Bat., 19VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Plastic component
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
13.3 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Arrow Lake
Socket
FCBGA2049
CPU Support Type
Core Ultra 5, Core Ultra 7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Maximum Memory
32 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 7 (802.11a/b/g/n/ac/ax/be)
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
Additional Functions
Camera Frontside
5 MP
Rear Camera
13 MP
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
Smart Card Reader
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.4
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
RJ45 Ethernet, 1xUSB, Mic In, Line Out, DC Input, USB type C
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3800 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
325 mm
Height
273.5 mm
Depth
20 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE/FCC
Medicine
IEC 60601-1
Radio
rcm
Dimensions
Net Weight
1.72 kg
Gross Weight
2.3 kg
