M14M--M

M14M--M

ONERugged
SKU: 80401900

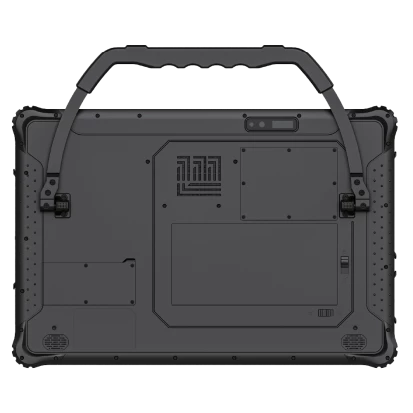

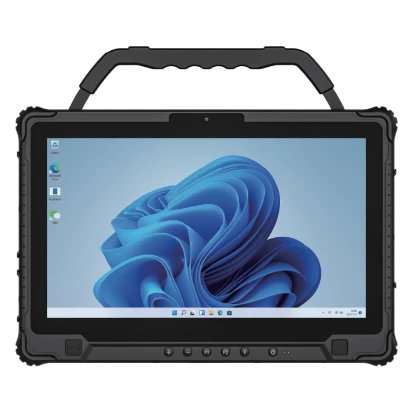

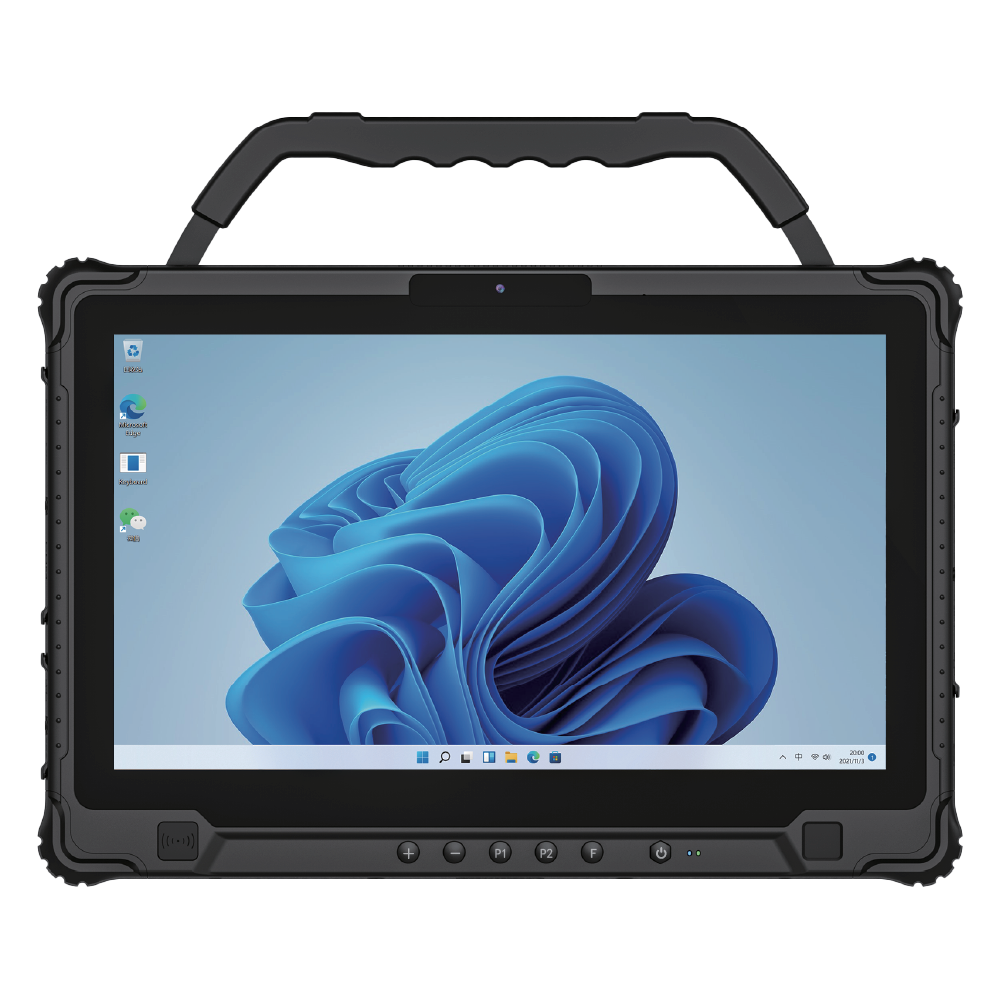

14" Rugged IP65 OneRugged M14M Tablet PC, Fan Design, Intel Ultra 5, 1920x1080, 16GB DDR5, 256GB SSD, USB3.2, Thunderbolt4, Mini-HDMI, LAN, COM, Audio, LTE/GPS, WiFi/BT, 5MP/13MP Cam, Optional: 2D Barcode/NFC, 1300mAh+4700mAh, Opt. Win 10/11 Pro/IoT
Price on request
Available
Available

System configuration
Price with VAT
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request

Construction
Construction Chassis
Metal Chassis, Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
14 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Meteor Lake
Processor Installed
Intel Core Ultra 5 125H
Socket
FCBGA2049
CPU Support Type
Core Ultra 5, Core Ultra 7
Max CPU frequency
4.5 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
16 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
Mini HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
2
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M
SIM Card slots
Yes, 1
Additional Functions
Camera Frontside
5 MP
Rear Camera
13 MP
GPS
GPS
Barcode Scanner
Optional
NFC
Yes
Fingerprint Scanner
Yes
Antenna characteristics
Cellular interfaces
4G, 5G (Optional)
Bluetooth
v5.1
LED / Controls
LED
Power LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 3xUSB, Mic In, Line Out, DC Input, SIM Card Slot, MicroSD card slot, Mini HDMI, 1xUSB type C (Thunderbolt 4)
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
72 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
4700 mA*h
RunTime Battery 1
8 h
Battery 1 Hotswap
Yes
Additional Battery Type
Li‑ion
Additional Battery Capacity
1300 mA*h
Additional Battery Hotswap
No
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Operating System Installed
Windows 11
Dimensions and weight
Width
366.2 mm
Height
246.9 mm
Depth
24.8 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Temperature (Storage)
-30~+70
Dimensions
Net Weight
2.23 kg
Gross Weight
2.6 kg

Documentation
M14M Datasheet
