S101NT
Winmate
SKU: 80363900

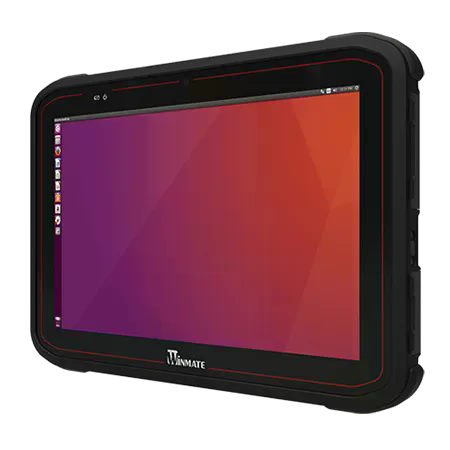

10.1" Rugged Tablet PC, 1920x1080, 800cd/m2, PCAP Touch, NVIDIA Jetson Orin Nano 6-Core SoC, 8GB LPDDR5 RAM, 128GB SSD, 1xGbE LAN, 1xUSB 3.0, 1xUSB-C PD Alt., MicroSD, SIM, Audio, 8/2MP R/F Cam, WiFi/BT/GPS, 3500mAh Bat., 19VDC-in w/ PSU, Jetpack 6.2
Price on request
Available
Available
Construction
Construction Chassis
Rubber, Aluminium Chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
800 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Nvidia Jetson Orin Nano (6-Core)
Socket
CPU onboard
Max CPU frequency
1.5 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
Type C DP
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS, GLONASS
Barcode Scanner
Optional
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
Bluetooth
Yes
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off, Function Keys
Connectors
Connectors
RJ45, 1xUSB, Mic In, Line Out, DC Input, SIM Card Slot, MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3500 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Installed
NVIDIA Jetpack 6.2
Dimensions and weight
Width
272 mm
Height
192 mm
Depth
25 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration, MIL-STD-810H Test Method 516.8 Drop 3 ft
Dimensions
Net Weight
1.1 kg
Gross Weight
1.6 kg
