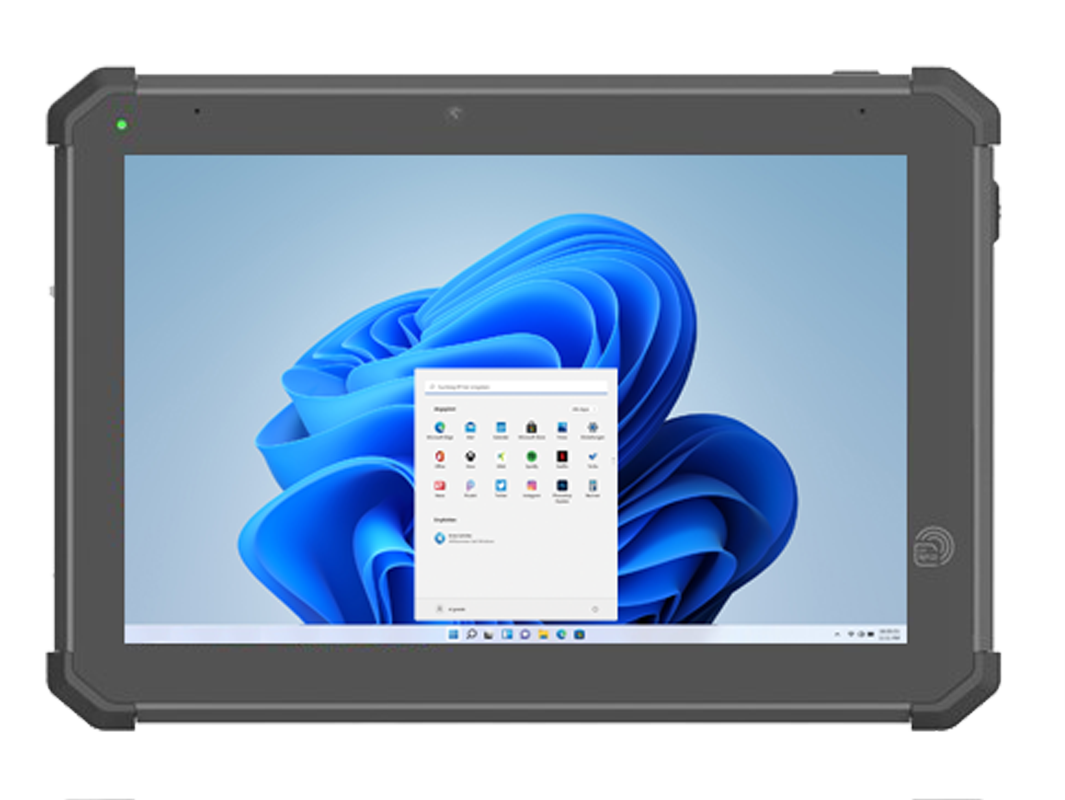

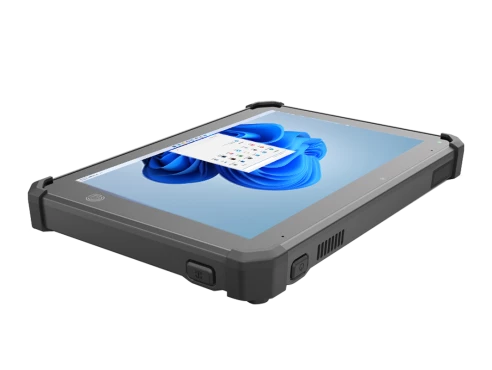

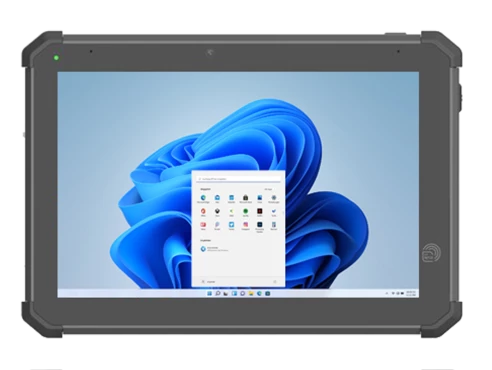

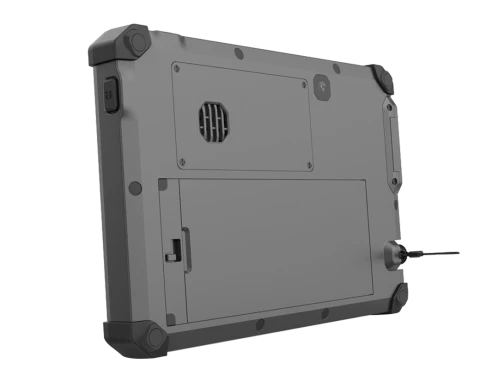

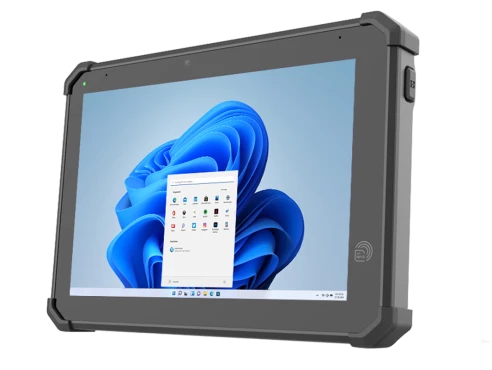

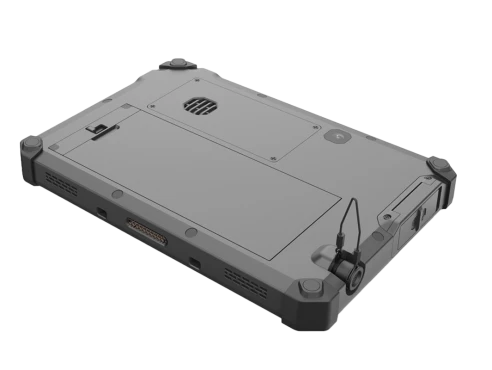

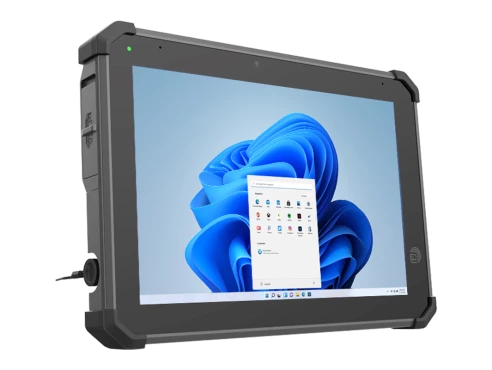

DT381WF-Tactical-Tablet--M
DT Research
SKU: 80167400
8" Rugged Tablet, IP65, 1280x800, 850cd/m2, PCAP, Intel Core N355 CPU, 16GB LPDDR5 RAM, Up to 1TB M.2 SSD, 1xGbE LAN, 1xUSB 3.0, 1xUSB-C, 24-pin Fischer Port, MicroSD, WiFi/BT, Opt. (RFID/2D Barcode/Cam.), 3350mAh Bat., 19VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
850 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N355
Socket
FCBGA1264
Max CPU frequency
3.9 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 7 (802.11a/b/g/n/ac/ax/be)
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
512 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2242 M
Additional Functions
RFID Reader
Optional
Barcode Scanner
Optional
Antenna characteristics
Bluetooth
v5.4
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
RJ45 Ethernet, 1xUSB, DC Input, MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3350 mA*h
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
216.94 mm
Height
152.56 mm
Depth
20 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Dimensions
Net Weight
0.78 kg
Gross Weight
1.3 kg
