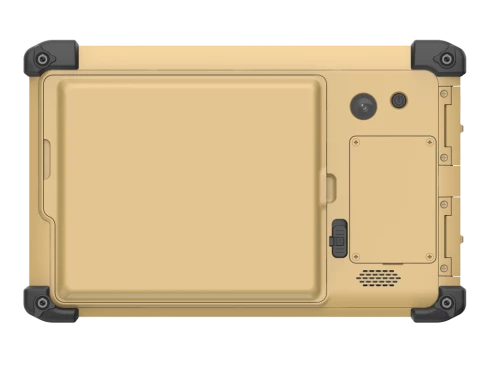

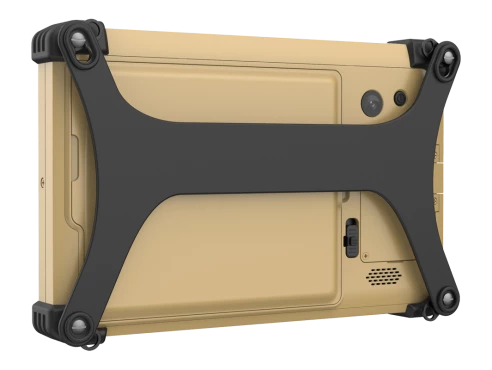

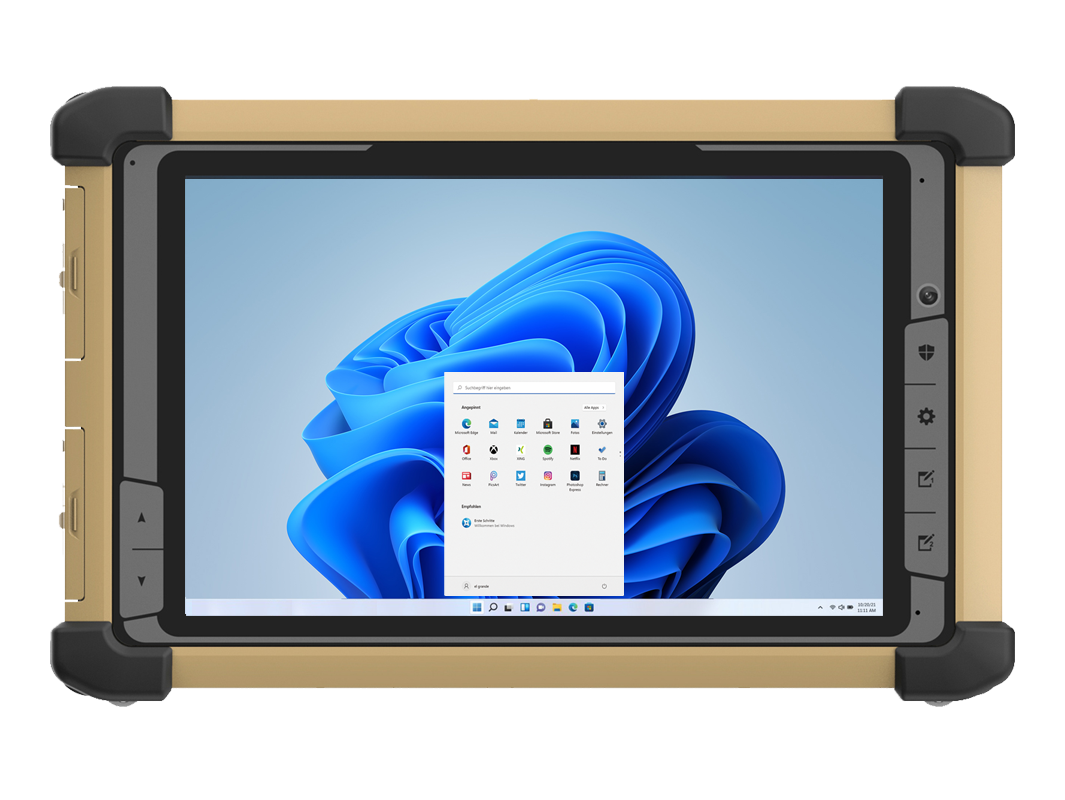

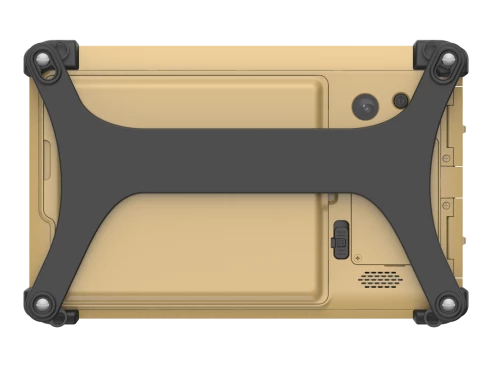

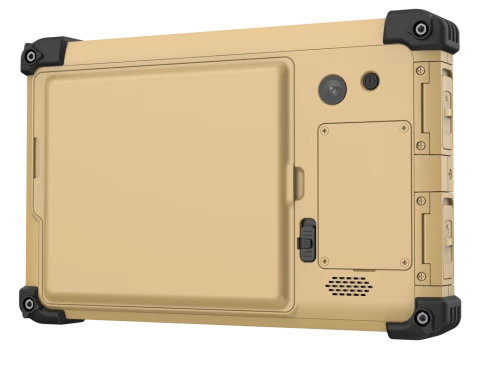

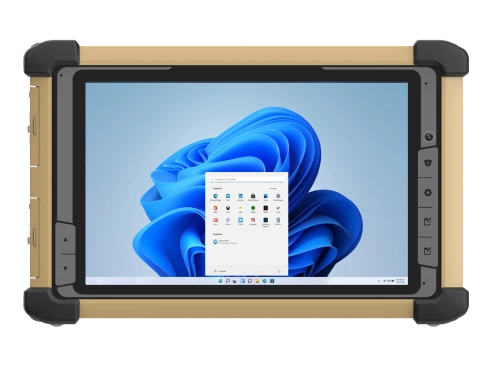

DT381RP-Rugged-Tablet--M
DT Research
SKU: 80147700
8" Rugged Tablet, IP65, 1280x800, 800cd/m2, PCAP Touch, Intel 13th Gen Core i5/i7 CPU, 16GB LPDDR5 RAM, Up to 1TB M.2 SSD, 1xGbE LAN, 1xUSB 3.2, 1xUSB-C, MicroSD Slot, WiFi/BT, Opt. (LTE/GPS/Long Range BT or Rear Cam.), 6000mAh Bat., 19VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
ABS plastic chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Socket
FCBGA1744
CPU Support Type
Core i5, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
MicroSD
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
Additional Functions
Camera Frontside
8 MP
Rear Camera
8 MP
GPS
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.2
LED / Controls
LED
Power LED
Controls
Control Buttons
Connectors
Connectors

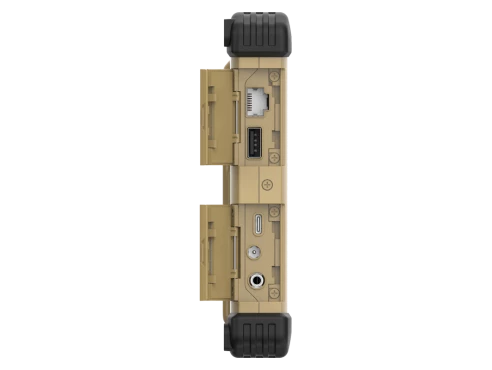

RJ45 Ethernet, 1xUSB, Mic In, Line Out, DC Input, MicroSD card slot, USB type C
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
6000 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
234 mm
Height
147.3 mm
Depth
25.5 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Dimensions
Net Weight
1.2 kg
Gross Weight
1.7 kg
