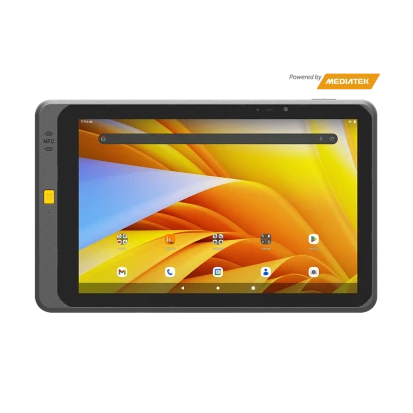

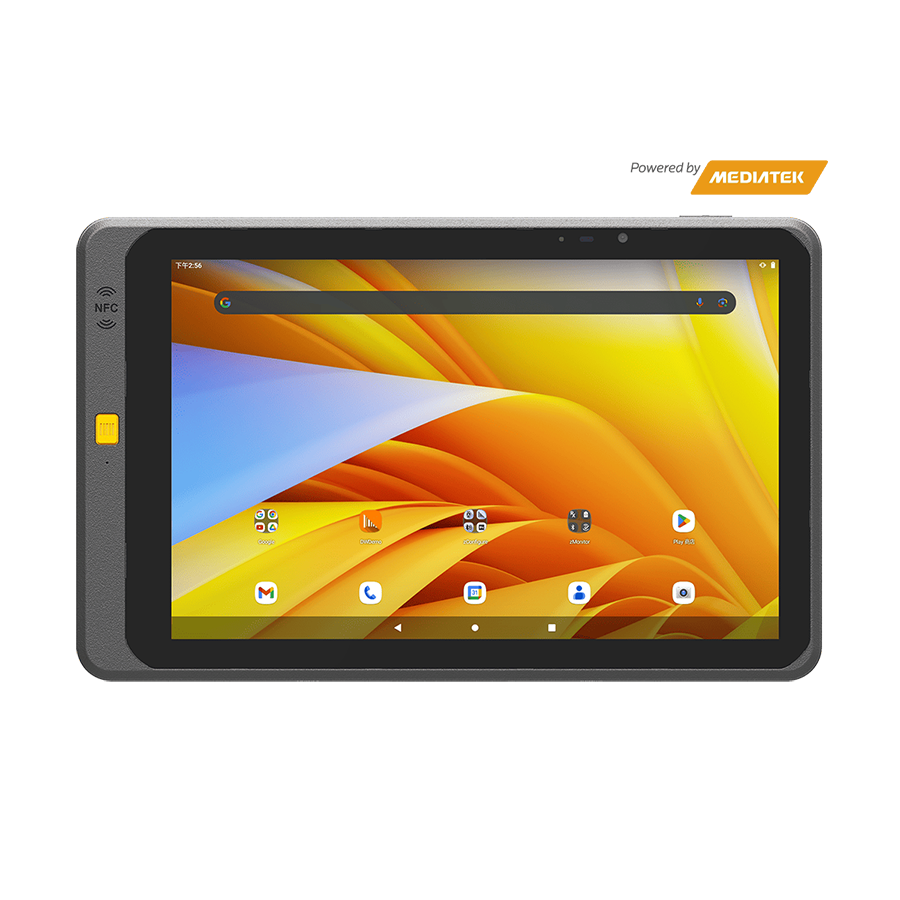

Ruby-10
Arbor
SKU: 80046700
10.1" Rugged Tablet PC, IP65, 1280x800, 520cd/m2, Touch, MediaTek MT8781 2.2GHz SoC, 4/8GB LPDDR4x RAM, 64/128GB UFS2.2, MicroHDMI, 1xUSB-C, 1/2xSIM/MicroSD, 13/8MP R/F Cam., WiFi/BT/LTE, GPS, NFC, Audio/Mic, 6600mAh Hot-Swap Bat., 5/9VDC-in, Android
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10 "
Maximum resolution
1280x800 Dots
Brightness
520 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
MediaTek MT8781
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
1
USB 2.0
1
Drive interfaces
MicroSD
1
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
Camera Frontside
8 MP
Rear Camera
13 MP
GPS
GPS, GLONASS
NFC
Yes
Sensors
Light Sensor, G-sensor, Gyroscope, E-compass
Antenna characteristics
Cellular interfaces
2G, 3G, 4G
Bluetooth
Yes, v5.0
Connectors
Connectors
SIM Card Slot, MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
5..9 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
18 W
Battery
Battery 1 Technology
Li-ion
Battery Capacity
180 mA*h
Battery 1 Hotswap
No
Additional Battery Type
Li‑ion
Additional Battery Capacity
6600 mA*h
Additional Battery Hotswap
Yes
Software
Operating System Installed
Android
Dimensions and weight
Width
268.2 mm
Height
171.9 mm
Depth
12.3 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
Safety
NCC
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
