S101MT

S101MT

Winmate
SKU: 80086400

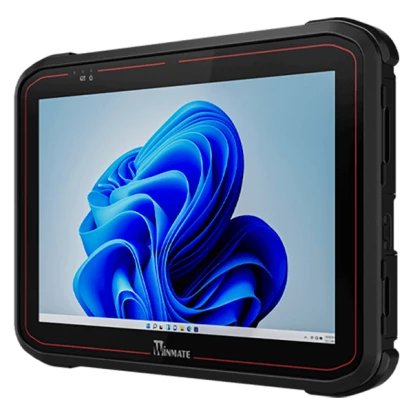

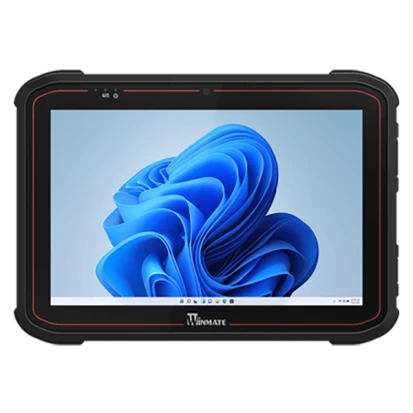

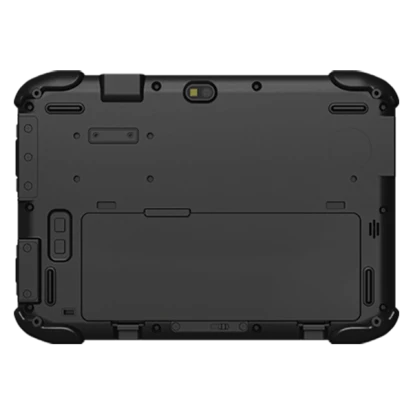

10.1" Rugged Tablet PC, IP65 Full, 1920x1200, 800 cd/m2, PCAP Touch, Intel Core Ultra 5 125U CPU, 8GB DDR5 RAM, 256GB M.2 SSD, 1xGbE LAN, 1xUSB, 1xUSB-C, Wi-Fi/BT, GPS, Audio, MicroSDXC, 8/2MP CAM, 11.4V 3500MAh Battery, 19VDC-in, Win 11 IoT LTSC
Price on request
Available
Available
Construction
Construction Chassis
Rubber
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
800 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Meteor Lake
Processor Installed
Intel Core Ultra 5 125U
Socket
FCBGA2049
Max CPU frequency
4.3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
1
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS, GLONASS
Sensors
Light Sensor, G-sensor, Gyroscope
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
Yes
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off, Function Keys
Connectors
Connectors
RJ45 Ethernet, 1xUSB, Line Out, DC Input, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3500 mA*h
RunTime Battery 1
10.4 h
Battery 1 Hotswap
Optional
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise
Operating System Installed
Windows IoT Enterprise 11
Dimensions and weight
Width
272 mm
Height
192 mm
Depth
25 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 514.8 Vibration, MIL-STD-810H Test Method 516.8 Drop 3 ft
Dimensions
Net Weight
1.1 kg
Gross Weight
1.8 kg
