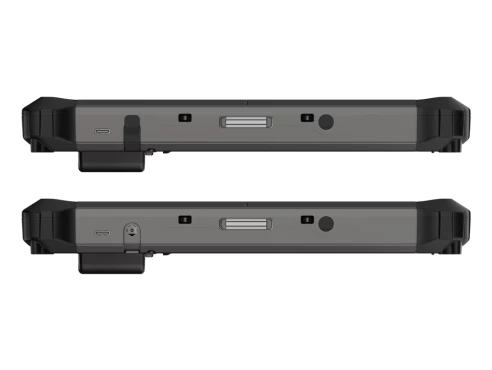

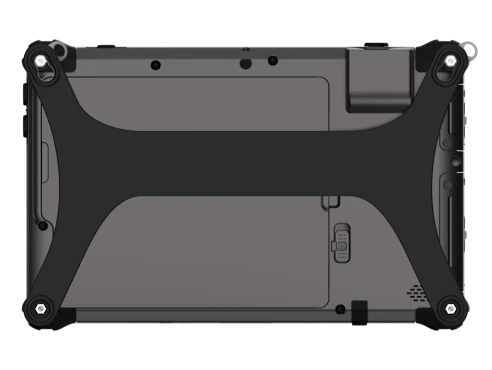

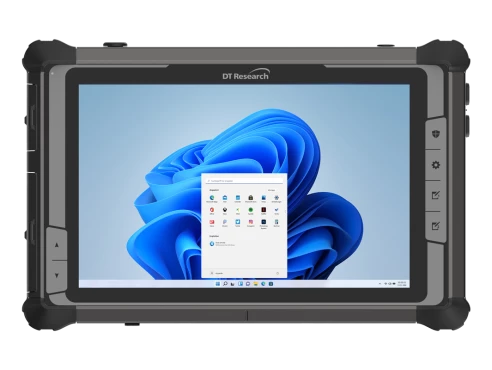

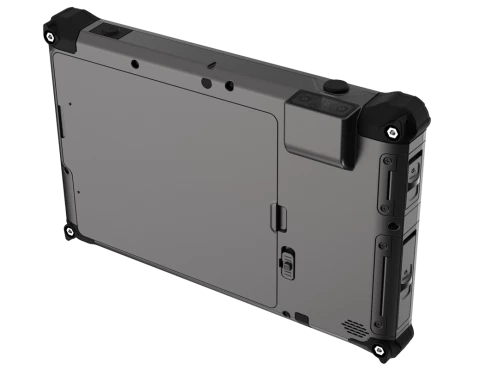

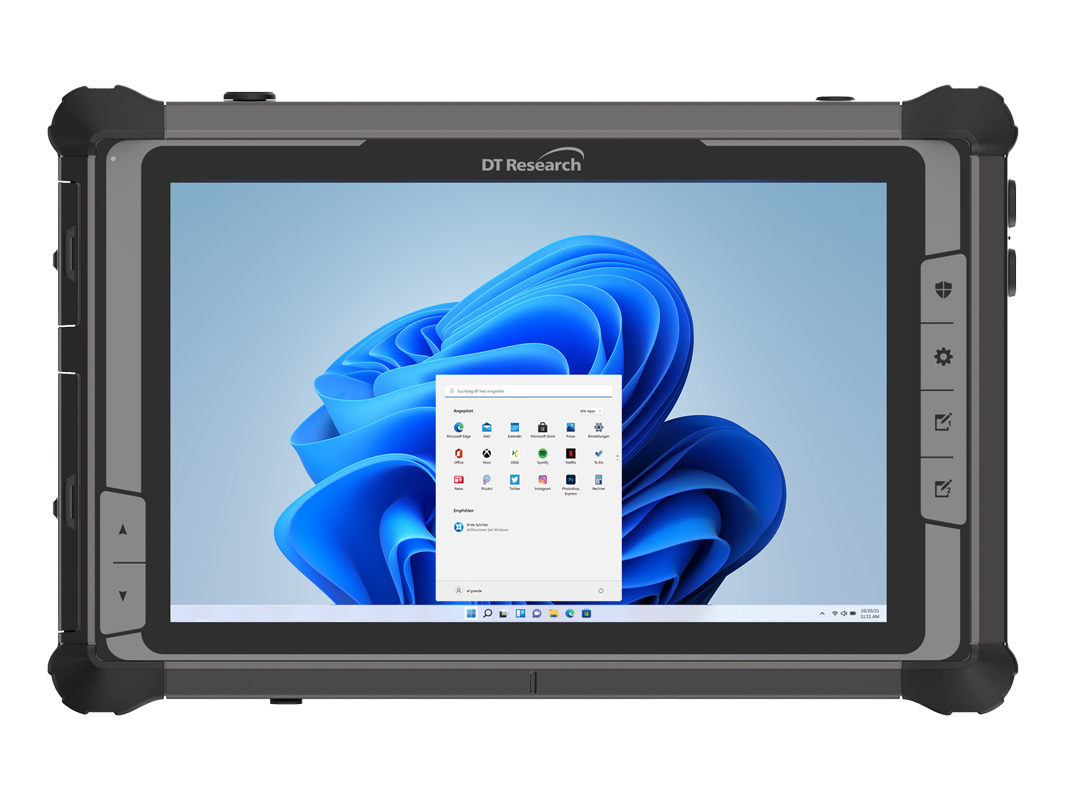

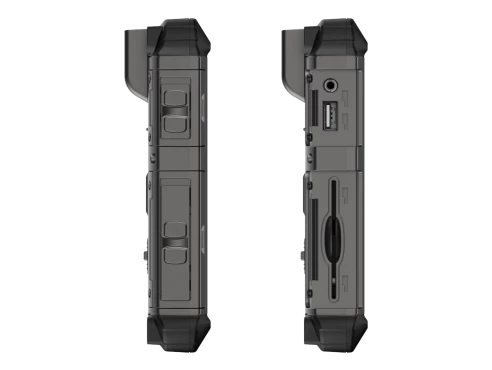

DT382W-Rugged-Tablet--M
DT Research
SKU: 80165500
8" Rugged Tablet, IP65, 1280x800, 800cd/m2, PCAP, Intel Core N250/N350 CPU, 16GB LPDDR5 RAM, Up to 1TB M.2 SSD, 1xGbE LAN, 1xUSB 3.0, 1xUSB-C, MicroSD, WiFi/BT, Opt. (LTE/GPS/LRBT/Rear Cam./NFC/RFID/Barcode/Smart Card), 3800mAh Bat., 19VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Plastic component
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N250
Socket
FCBGA1264
Max CPU frequency
3.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
MicroSD
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
Smart Card Reader
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.3
LED / Controls
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
1xUSB, Mic In, Line Out, DC Input, SIM Card Slot, MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3800 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
234 mm
Height
147.3 mm
Depth
27.7 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Dimensions
Net Weight
1.1 kg
Gross Weight
1.6 kg
Construction
Construction Chassis
Metal Chassis with Plastic component
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N250
Socket
FCBGA1264
Max CPU frequency
3.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
MicroSD
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
Smart Card Reader
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.3
LED / Controls
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
1xUSB, Mic In, Line Out, DC Input, SIM Card Slot, MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3800 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
234 mm
Height
147.3 mm
Depth
27.7 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Dimensions
Net Weight
1.1 kg
Gross Weight
1.6 kg
Construction
Construction Chassis
Metal Chassis with Plastic component
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N250
Socket
FCBGA1264
Max CPU frequency
3.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
MicroSD
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
Smart Card Reader
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.3
LED / Controls
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
1xUSB, Mic In, Line Out, DC Input, SIM Card Slot, MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3800 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
234 mm
Height
147.3 mm
Depth
27.7 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Dimensions
Net Weight
1.1 kg
Gross Weight
1.6 kg
Construction
Construction Chassis
Metal Chassis with Plastic component
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N250
Socket
FCBGA1264
Max CPU frequency
3.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
MicroSD
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
Smart Card Reader
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.3
LED / Controls
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
1xUSB, Mic In, Line Out, DC Input, SIM Card Slot, MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3800 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
234 mm
Height
147.3 mm
Depth
27.7 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Dimensions
Net Weight
1.1 kg
Gross Weight
1.6 kg
