M82A--M
ONERugged
SKU: 80160400

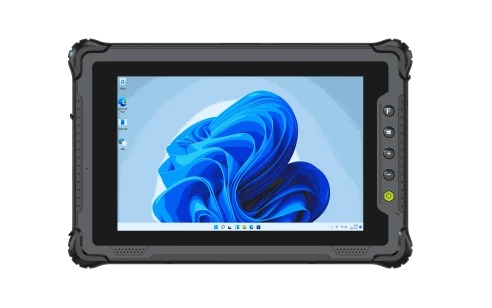

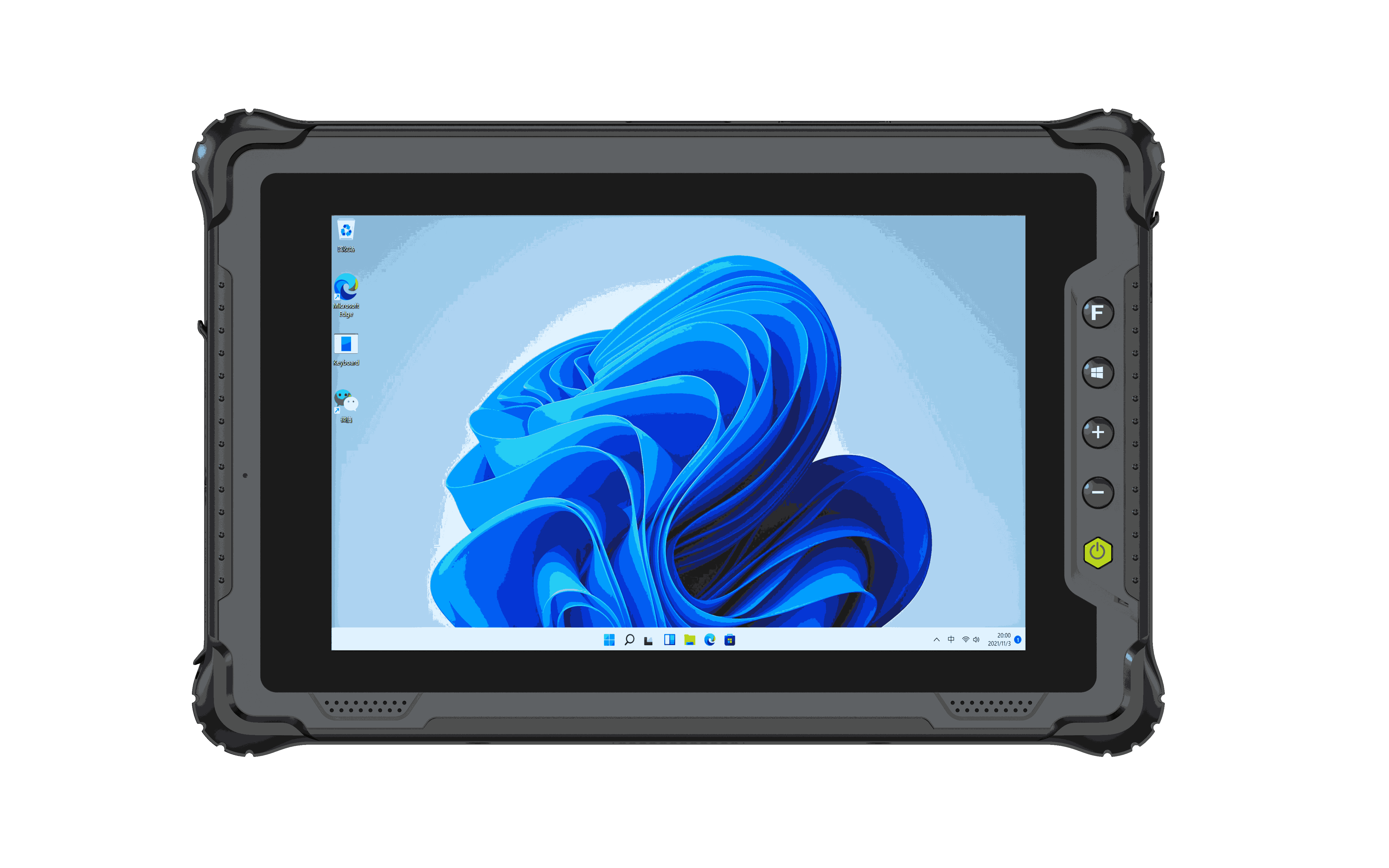

8" Rugged IP67 Tablet PC, Intel Core i5-1235U/i7-1255U CPU, 1920x1200, 550 nits, 16GB LPDDR4 RAM, 128GB M.2 SSD, 1xGbE LAN, USB3.0, USB-C, Optional: (Barcode 2D, NFC), Audio, TF/SIM, WiFi/BT/LTE/GPS, 13.0/5.0MP Cam, 5700mAh Bat., Win 10/11 Pro/IoT
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis, Rubber
Protection Level of Front Side (Panel)
IP67
Protection Level of Chassis
IP67
Type
Fan
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
550 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i7-1255U
Socket
FCBGA1744
CPU Support Type
Core i5, Core i7
Max CPU frequency
4.7 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
Camera Frontside
5 MP
Rear Camera
13 MP
GPS
GPS, GLONASS
Barcode Scanner
Optional
NFC
Optional
Fingerprint Scanner
Yes
Antenna characteristics
Cellular interfaces
4G
Bluetooth
v5.3
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
RJ45 Ethernet, 1xUSB, DC Input, SIM Card Slot, MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
48 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
5700 mA*h
RunTime Battery 1
6.8 h
Battery 1 Hotswap
No
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
236.8 mm
Height
155.8 mm
Depth
21.6 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Temperature (Storage)
-30~+70
Standards and Certifications
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock
Dimensions
Net Weight
0.9 kg
Gross Weight
1.33 kg
