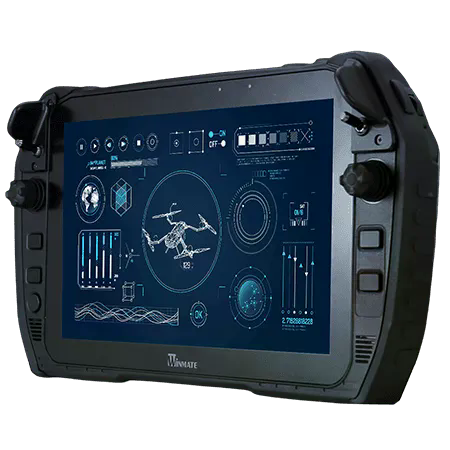

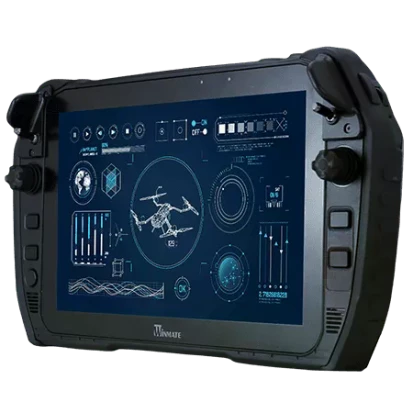

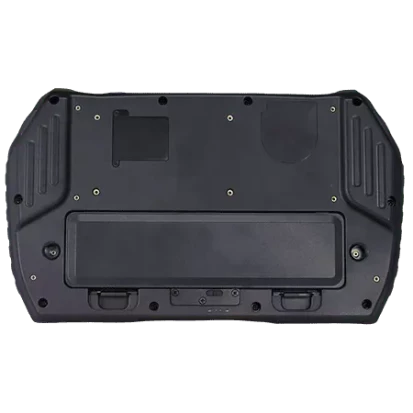

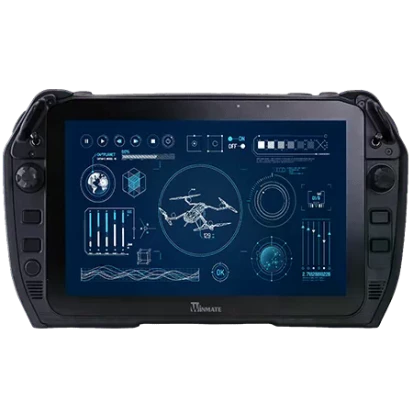

G101AD-A
Winmate
SKU: 80210900
10.1" Rugged Robotic Controller, IP65 Full, 1920x1200, 800cd/m2, Optical Bond with AG/AF, PCAP Touch, Intel Core i5-1235U CPU, 8GB DDR5 RAM, 256GB NVMe SSD, MicroHDMI, 1xM10 LAN, 1xUSB-C, 1xUSB-A, WiFi/BT/GPS, 6700mAh Bat, 19VDC-in with 120W PSU
Price on request
Available
Available
Construction
Construction Chassis
ABS plastic chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
800 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
FCBGA1744
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
Micro HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
1
M.2
1
Antenna characteristics
Bluetooth
v5.3
Keyboard / Pointing Devices
Type Mouse
Joystick
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
1xUSB, Micro HDMI, USB type C, M10 LAN
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
6700 mA*h
RunTime Battery 1
10.5 h
Battery 1 Hotswap
No
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04
Dimensions and weight
Width
259.8 mm
Height
166.1 mm
Depth
44.2 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
1.6 kg
Gross Weight
2.1 kg
