EDS-405A-MM-SC

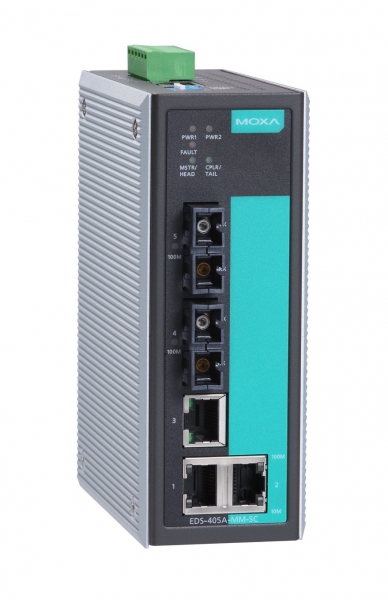

Fast Ethernet switch EDS-405A-MM-SC houses 3 10/100 BaseT and 2 100BaseFX ports. The device refers to unmanaged L2 switches and provides broad number of intelligent functions that help to secure safe remote management and active control. The device is housed in a fanless industrial grade chassis and has a redundant power input with current fuses. Switch EDS-405A-MM-SC by MOXA: description and features: 5 km. Wave length 1300 nm. TX: -10…-20 dBm. Receiver sensitivity -32 dBm. Optical budget: 12 dB. Dispersion penalty: -6 dBm. There are protocols of multicast traffic filtration (IGMP, GMRP), planning (VLAN, GVRP), prioritizing (QoS), as well as various IP addresses policies (DHCP 82), flexible connections (LACP). There is a bandwidth limit, and the device sends messages on its status either via an email, or over a discrete output relay channel. Turbo Ring and Turbo Chain signal redundancy technologies ensure optimal recovery speed and several ring topologies. The metal housing is well protected (IP30) and can be mounted on a DIN-rail or a wall. Mean time between failures – over 40 years. EDS-405A-MM-SC can be applied in various production branches, in oil and gas industry (UL/cUL, ATEX), on land transport (NEMA TS2), and marine transport (DNV, GL). There are several control modes - a console port, switches, Telnet, web interface – that facilitate the work of an engineer. The notification system provides complete information about the device condition and informs about errors in operation on early stages. Hence, this switch would be an ideal solution for deployment of Fast Ethernet network in harsh industrial conditions.
