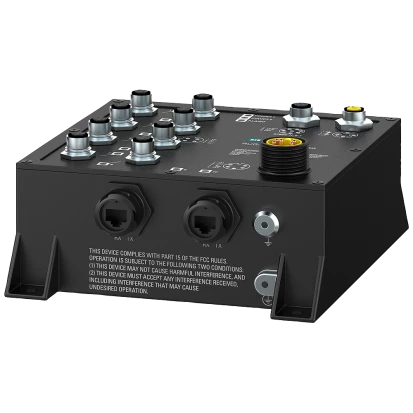

RUGGEDCOM-M969NC-M

Siemens AG
SKU: 57897700
RUGGEDCOM M969NC MIL-STD IP66/67 Managed Ethernet Switch with 8x10/100Base-TX D-Coded M12 or RJ45 IP67 connectors, up to 2xFiber LX, FX, SX ports, 56-bit Encryption,24V DC-In or 48V DC-In or 88..300 VDC or 85..264 VAC, Wide Temp. -40..85C
Price on request
Available
Available

System configuration
Price with VAT
Price on request
System configuration
Price with VAT
Price on request

Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, VLAN, SNTP, TFTP, IGMP, DHCP Client, DHCP Option 66/67/82
Reservation protocols
STP, RSTP
Security Protocols
HTTPS, RADIUS, SSL, TACACS+, PPP, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
LED / Controls
Setup of Operation Mode
Console Port, Web-interface
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP66, IP67
Dimensions and weight
Width
177.8 mm
Depth
94 mm
Height
209.55 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE, CISPR 22 Class A, FCC Class A
Power Automation
IEC 61850-3, IEEE 1613
Automotive
NEMA TS2
Safety
CSA C22.2 No. 60950-1
Dimensions
Net Weight
2.25 kg
Gross Weight
2.6 kg
