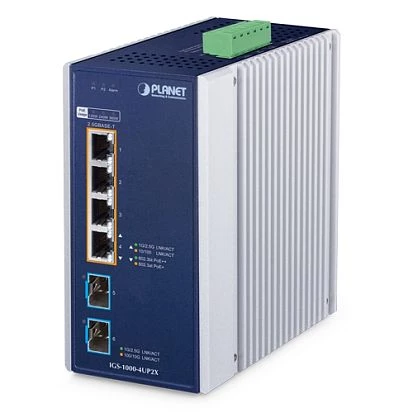

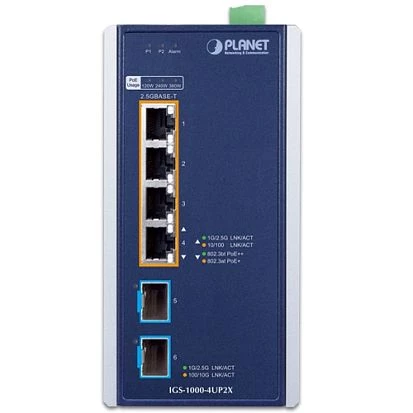

IGS-1000-4UP2X
Planet
SKU: 57956800
Industrial Managed Ethernet Switch, IP30, 4x10/100/1000Base-T with PoE, 2x10GBase-X SFP+, 48..54 VDC, Operating Temperature -40..75 C
Price on request
Available on order
Available on order
Ethernet
2,5 Gbit/s
4
10 Gbit SFP+ Ports
2
Switch Properties
MAC Table Size
4000
Jumbo Frame Size
12 kB
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3bz for 2.5GBaseX, IEEE 802.3bt for Power over Ethernet

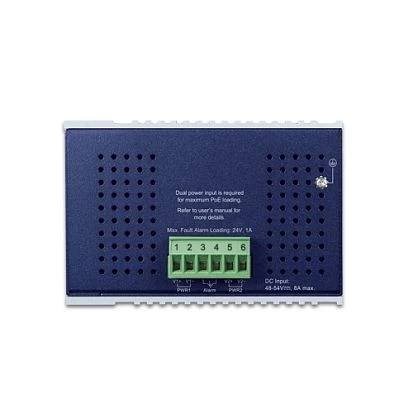

System Power Input
Input Voltage DC
48..54 V
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
76.8 mm
Depth
107.3 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
2 kg
