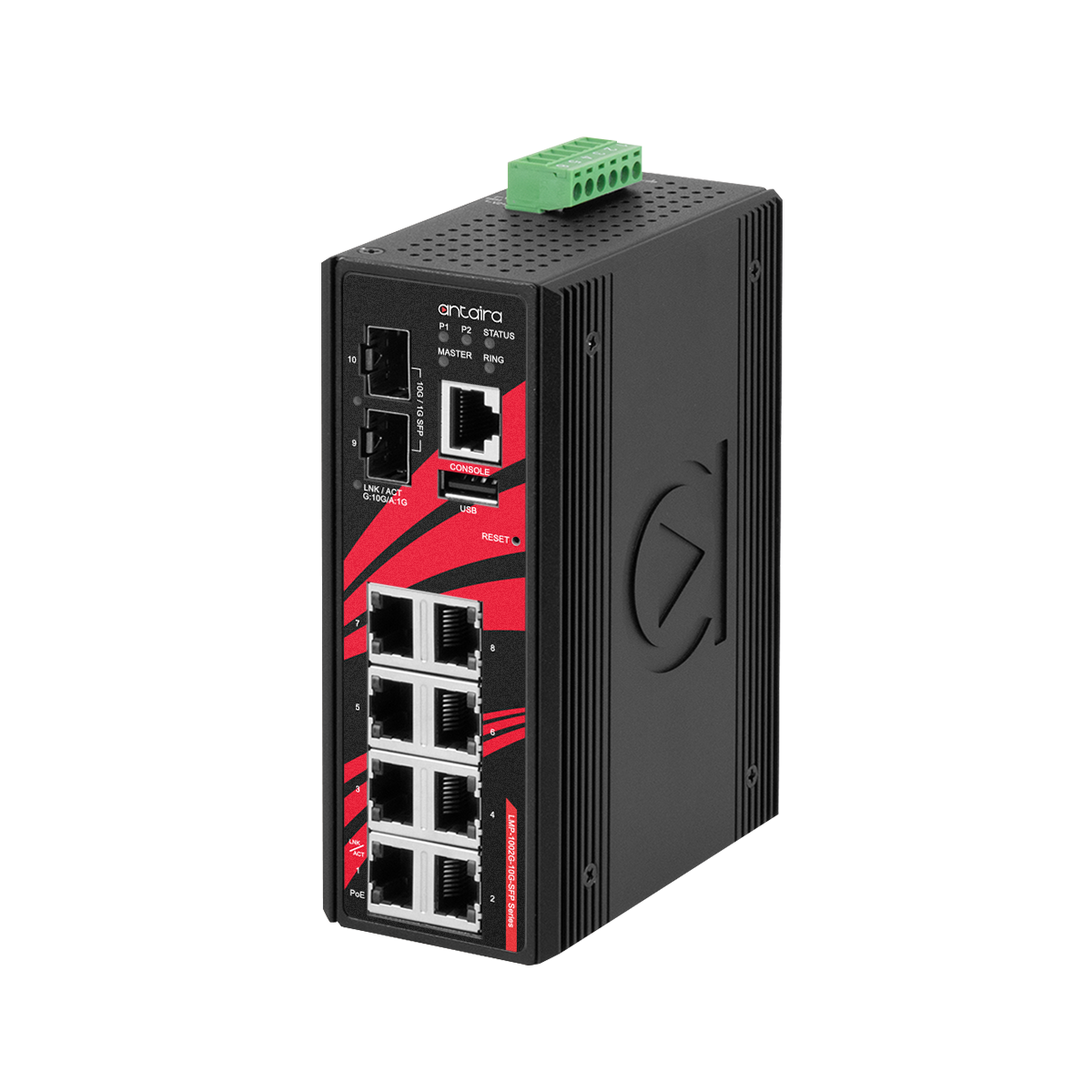

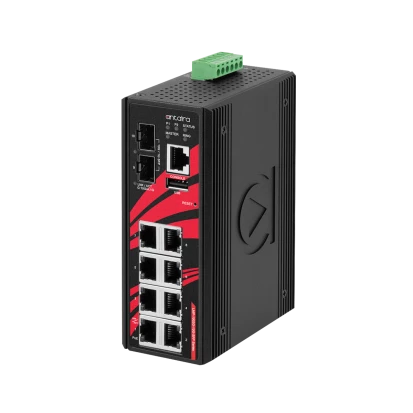

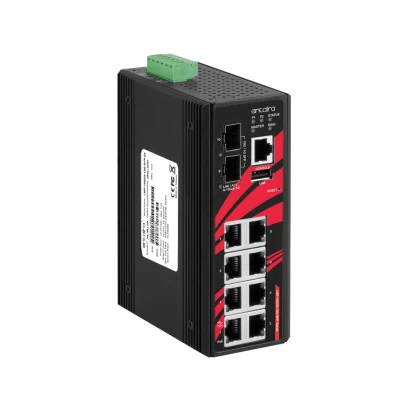

LMP-1002G-10G-SFP-24
Antaira Technologies
SKU: 80253400
Industrial Layer 3 Managed PoE+ Ethernet Switch, IP30, 8x10/100/1000Base-TX with PoE+, 2x1000/10G SFP+, Power Input 12..55 VDC, Operating Temperature -40..60 C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
10 Gbit SFP+ Ports
2
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
4095
IGMP Groups
1024
Supported Protocols
Industrial Protocols
Modbus TCP
Protocol Layer 3
Static Routing
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, DNS, DHCP, NTP, GVRP, RMON, LACP, IGMP Snooping v1/v2/v3, GARP
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, SSH2
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control

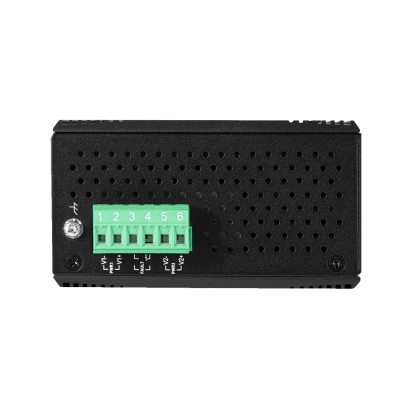

System Power Input
Input Voltage DC
12..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
54 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-40..60 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.3 kg
