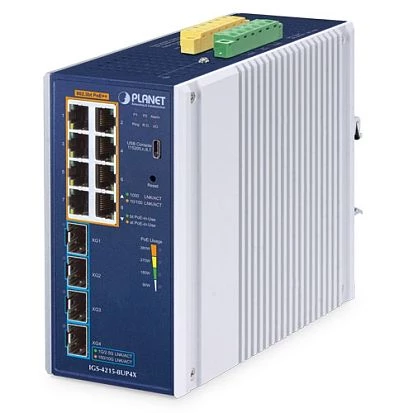

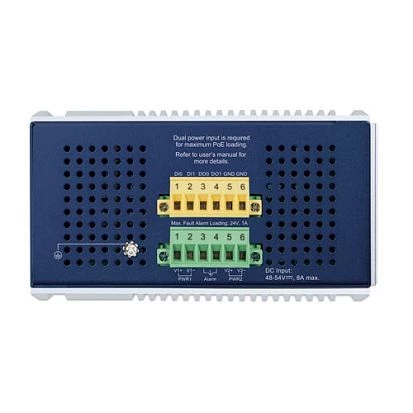

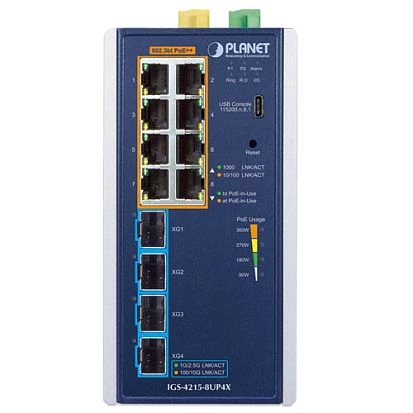

IGS-4215-8UP4X
Planet
SKU: 57866100
Industrial Managed Ethernet Switch IP30, 8-Port 10/100/1000BASE-T with PoE++, 4-Port 10GBASE-SR/LR SFP+, 1xCOM, 1xUSB, 2xDI, 2xDO, 48..54 VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
8
10 Gbit SFP+ Ports
4
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
12 kB
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, SNTP, TFTP, DHCP Option 66/67/82, IGMP Snooping v1/v2/v3
Security Protocols
RADIUS, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
48..54 V
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
76 mm
Depth
135 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.4 kg
Gross Weight
2 kg
